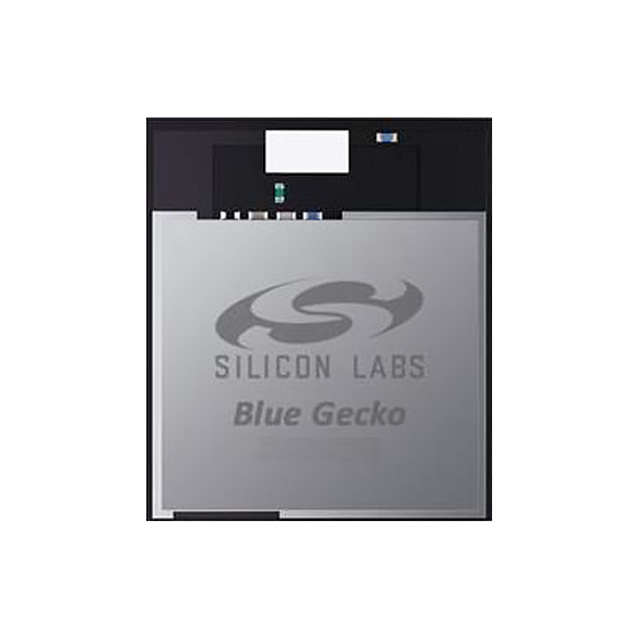

BGM13P22F512GE-V2
ActiveSilicon Labs
RF TXRX MOD BLUETOOTHU.FL SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BGM13P22F512GE-V2
ActiveSilicon Labs
RF TXRX MOD BLUETOOTHU.FL SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BGM13P22F512GE-V2 |
|---|---|
| Antenna Type | Antenna Not Included, U.FL |
| Current - Receiving | 9.9 mA |
| Current - Transmitting | 9.5 mA |
| Data Rate | 2 Mbps |
| Frequency | 2.4 GHz |
| Modulation | GFSK |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Power - Output | 8 dBm |
| Protocol | Bluetooth v5.0 |
| RF Family/Standard | Bluetooth |
| Sensitivity | -94.8 dBm |
| Serial Interfaces | SPI, I2C, GPIO, I2S, UART |
| Utilized IC / Part | EFR32BG |
| Voltage - Supply [Max] | 3.8 V |
| Voltage - Supply [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 1 | $ 7.87 | |
| 10 | $ 7.22 | |||
| 25 | $ 6.56 | |||
| 100 | $ 5.90 | |||
| 300 | $ 5.78 | |||
Description
General part information
BGM13 Series
Bluetooth Bluetooth v5.0 Transceiver Module 2.4GHz Antenna Not Included, U.FL Surface Mount
