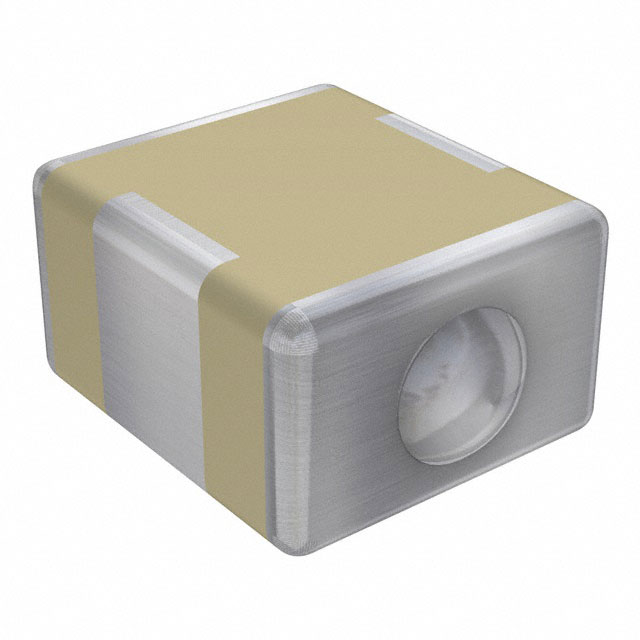

SBSMP1000334MXT

Active

Knowles Johanson Manufacturing

FILTER LC(PI) 0.33UF SMD

Deep-Dive with AI

Search across all available documentation for this part.

SBSMP1000334MXT

Active

Knowles Johanson Manufacturing

FILTER LC(PI) 0.33UF SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SBSMP1000334MXT

Applications	General Purpose
Attenuation Value	44 dB
Current	10 A
ESD Protection	False
Filter Order	3
Height [z]	0.13 in
Height [z]	3.3 mm
Mounting Type	Surface Mount
Number of Channels	1
Package / Case	2220 (5750 Metric), 3 PC Pad
Size / Dimension [x]	0.224 in
Size / Dimension [x]	5.7 mm
Size / Dimension [y]	5 mm
Size / Dimension [y]	0.197 "
Technology	LC (Pi)
Type	Low Pass
Values	0.33 µF
Voltage - Rated	100 V

SBSMP Series

Part	Current	Insertion Loss	Voltage - Rated	Temperature Coefficient	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Height (Max)	Height (Max) [Max] [z]	Capacitance	Tolerance	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Attenuation Value	Filter Order	Type	Technology	Number of Channels	Values	Height	Height	Applications
Knowles Johanson Manufacturing SBSMP5000682MXB	10 A	44 dB	500 V	X7R	0.224 in	5.7 mm	5 mm	0.197 "	3.38 mm	0.133 in	6800 pF	20 %	2220 (5750 Metric) 3 PC Pad	-55 °C	125 °C	Surface Mount
Knowles Johanson Manufacturing SBSMP5000103MXT	20 A		500 V		0.224 in	5.7 mm	5 mm	0.197 "					2220 (5750 Metric) 3 PC Pad	-55 °C	125 °C	Surface Mount	44 dB	3	Low Pass	LC (Pi)	1	10000 pF	0.133 in	3.38 mm	General Purpose
Knowles Johanson Manufacturing SBSMP5000683MXR	20 A		500 V		0.224 in	5.7 mm	5 mm	0.197 "					2220 (5750 Metric) 3 PC Pad	-55 °C	125 °C	Surface Mount	44 dB	3	Low Pass	LC (Pi)	1	0.068 µF	0.133 in	3.38 mm	General Purpose
Knowles Johanson Manufacturing SBSMP1000334MXR	20 A		100 V		0.224 in	5.7 mm	5 mm	0.197 "					2220 (5750 Metric) 3 PC Pad	-55 °C	125 °C	Surface Mount	44 dB	3	Low Pass	LC (Pi)	1	0.33 µF	0.133 in	3.38 mm	General Purpose
Knowles Johanson Manufacturing SBSMP5000152MXT	20 A		500 V		0.224 in	5.7 mm	5 mm	0.197 "					2220 (5750 Metric) 3 PC Pad	-55 °C	125 °C	Surface Mount	39 dB	3	Low Pass	LC (Pi)	1	1500 pF	0.133 in	3.38 mm	General Purpose
Knowles Johanson Manufacturing SBSMP5000222MXB	10 A	38 dB	500 V	X7R	0.224 in	5.7 mm	5 mm	0.197 "	3.38 mm	0.133 in	2200 pF	20 %	2220 (5750 Metric) 3 PC Pad	-55 °C	125 °C	Surface Mount
Knowles Johanson Manufacturing SBSMP5000473MXT	20 A		500 V		0.224 in	5.7 mm	5 mm	0.197 "					2220 (5750 Metric) 3 PC Pad	-55 °C	125 °C	Surface Mount	44 dB	3	Low Pass	LC (Pi)	1	0.047 µF	0.133 in	3.38 mm	General Purpose
Knowles Johanson Manufacturing SBSMP5000223MXT	20 A		500 V		0.224 in	5.7 mm	5 mm	0.197 "					2220 (5750 Metric) 3 PC Pad	-55 °C	125 °C	Surface Mount	44 dB	3	Low Pass	LC (Pi)	1	0.022 µF	0.133 in	3.38 mm	General Purpose
Knowles Johanson Manufacturing SBSMP5000472MXB	10 A	44 dB	500 V	X7R	0.224 in	5.7 mm	5 mm	0.197 "	3.38 mm	0.133 in	4700 pF	20 %	2220 (5750 Metric) 3 PC Pad	-55 °C	125 °C	Surface Mount
Knowles Johanson Manufacturing SBSMP1000334MXB	10 A	44 dB	100 V	X7R	0.224 in	5.7 mm	5 mm	0.197 "	3.38 mm	0.133 in	0.33 µF	20 %	2220 (5750 Metric) 3 PC Pad	-55 °C	125 °C	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 17.83
		10	$ 12.94
		50	$ 10.96
		100	$ 10.34
	Digi-Reel®	1	$ 17.83
		10	$ 12.94
		50	$ 10.96
		100	$ 10.34
	Tape & Reel (TR)	500	$ 9.28
		1000	$ 8.95

Description

General part information

SBSMP Series

LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel C = 0.33µF 10 A 2220 (5750 Metric), 3 PC Pad

Documents

Technical documentation and resources

No documents available
