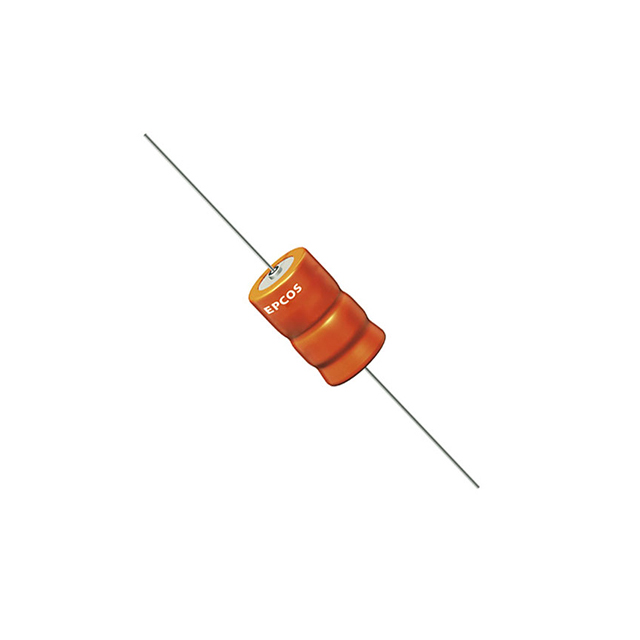

B40650A8607M001
ActiveEPCOS - TDK Electronics
CAP ALUM HYBRID 600UF 20% 63V TH
B40650A8607M001
ActiveEPCOS - TDK Electronics
CAP ALUM HYBRID 600UF 20% 63V TH
Description
General part information
B40650A8607M001
600 µF 63 V Aluminum - Polymer Capacitors Axial, Can 5.2mOhm 10000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | B40650A8607M001 |
|---|---|
| Applications | General Purpose |
| Capacitance | 600 µF |
| ESR (Equivalent Series Resistance) | 5.2 mOhm |
| Impedance | 5.7 mOhms |
| Lifetime | 10000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 135 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Axial |
| Ripple Current | 16 A |
| Size / Dimension Diameter | 0.551 in |
| Size / Dimension Length | 1.181 in |
| Tolerance | 20 % |
| Type | Hybrid |
| Voltage - Rated | 63 V |
