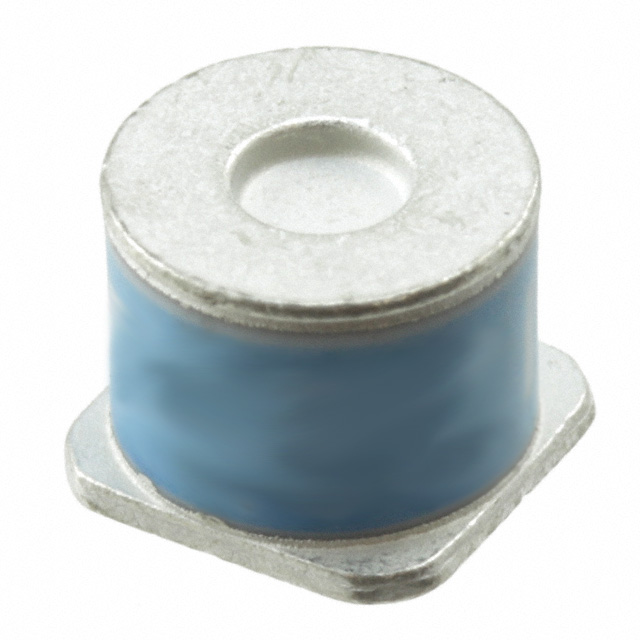

2027-25-SM-RP
ActiveBourns Inc.
GDT 250V 10KA 2 POLE SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2027-25-SM-RP
ActiveBourns Inc.
GDT 250V 10KA 2 POLE SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2027-25-SM-RP | 2027 Series |
|---|---|---|
| Fail Short | False | False |
| Impulse Discharge Current (8/20µs) | 10000 A | 10000 A |
| Impulse Discharge Current (8/20µs) | 10 kA | 10 kA |
| Mounting Type | Surface Mount | User Defined, Through Hole, Surface Mount |
| Number of Poles | 2 | 2 |
| Package / Case | 2-SMD Cylinder Square End | Cylinder No Lead, Axial Cylinder, Axial Cylinder, Radial Bend, 2-SMD Cylinder Square End |
| Tolerance | 15 % | 15 - 20 % |
| Voltage - DC Spark Over (Nom) | 250 V | 75 - 600 V |
2027 Series
GDT 420V 10KA 2 POLE
...
| Part | Number of Poles | Package / Case | Impulse Discharge Current (8/20µs) | Impulse Discharge Current (8/20µs) | Mounting Type | Fail Short | Voltage - DC Spark Over (Nom) | Tolerance |
|---|---|---|---|---|---|---|---|---|
Bourns Inc. 2027-42-ALF | 2 | Cylinder No Lead | 10000 A | 10 kA | User Defined | 420 V | 15 % | |
Bourns Inc. 2027-23-B | 2 | Axial Cylinder | 10000 A | 10 kA | Through Hole | 230 V | 15 % | |
Bourns Inc. 2027-47-A | 2 | Cylinder No Lead | 10000 A | 10 kA | User Defined | 470 V | 15 % | |
Bourns Inc. 2027-15-BT1LF | 2 | Axial Cylinder | 10000 A | 10 kA | Through Hole | 150 V | 15 % | |
Bourns Inc. 2027-07-B10LF | 2 | Axial Cylinder, Radial Bend | 10000 A | 10 kA | Through Hole | 75 V | 20 % | |
Bourns Inc. 2027-09-SM | 2 | 2-SMD Cylinder Square End | 10000 A | 10 kA | Surface Mount | 90 V | 20 % | |
Bourns Inc. 2027-09-B10LF | 2 | Axial Cylinder, Radial Bend | 10000 A | 10 kA | Through Hole | 90 V | 20 % | |
Bourns Inc. 2027-60-SM | 2 | 2-SMD Cylinder Square End | 10000 A | 10 kA | Surface Mount | 600 V | 15 % | |
Bourns Inc. 2027-15-BLF | 2 | Axial Cylinder | 10000 A | 10 kA | Through Hole | 150 V | 15 % | |
Bourns Inc. 2027-15-ALF | 2 | Cylinder No Lead | 10000 A | 10 kA | User Defined | 150 V | 15 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1000 | $ 0.58 | |
Description
General part information
2027 Series
Gas Discharge Tube 250 V 10000A (10kA) ±15% 2 Pole Surface Mount
