Description
General part information
55J20KE

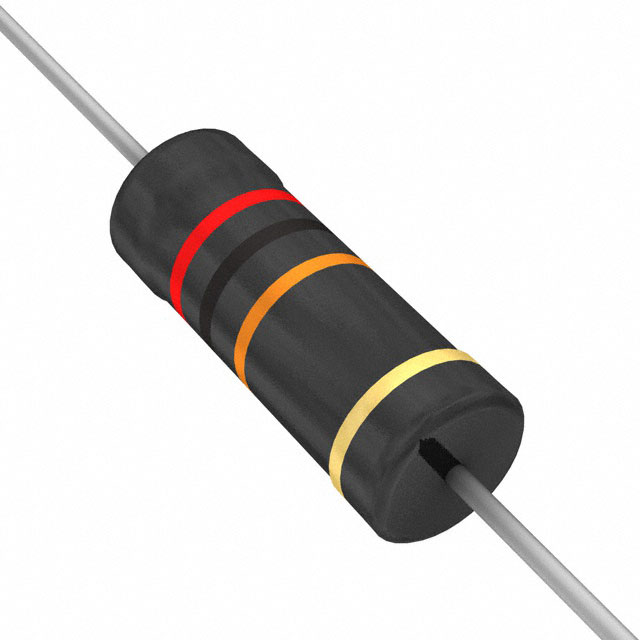

20 kOhms ±5% 5W Through Hole Resistor Axial Wirewound
Technical Specifications
Parameters and characteristics for this part
| Specification | 55J20KE |
|---|---|
| Composition | Wirewound |
| Number of Terminations | 2 |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 5 W |
| Resistance | 20 kOhm |
| Size / Dimension Diameter | 0.315 in |
| Size / Dimension Length | 0.827 in |
| Temperature Coefficient | 30 ppm/¯C |
| Tolerance | 5 % |
