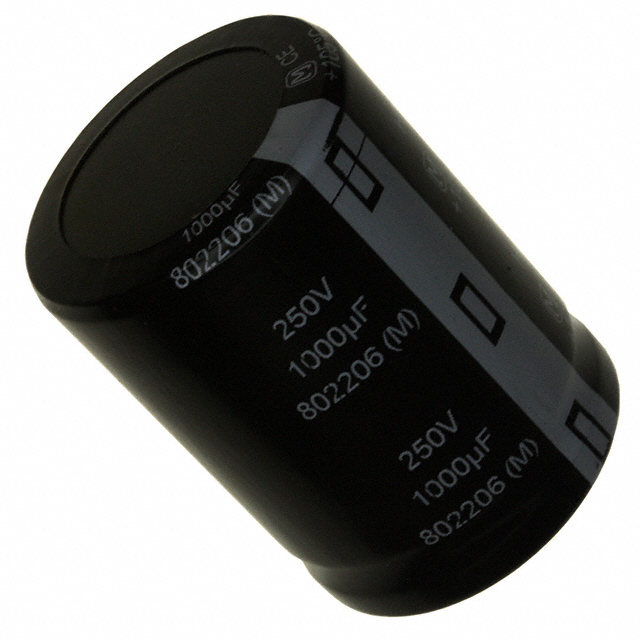

Specification	EET-HC2E102KA

Applications	General Purpose
Capacitance	1000 µF
ESR (Equivalent Series Resistance)	166 mOhm
Height - Seated (Max)	1.654 in
Lead Spacing	0.394 in
Lifetime	2000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Package / Case	Can - Snap-In, Radial
Polarization	Polar
Ripple Current	2.2 A, 3.08 A
Size / Dimension Diameter	1.181 in
Tolerance	20 %
Voltage - Rated	250 V

EET-HC Series

...

Part	Package / Case	Lifetime	Applications	Size / Dimension Diameter	Capacitance	Height - Seated (Max)	Voltage - Rated	Polarization	Tolerance	Lead Spacing	Operating Temperature (Min)	Operating Temperature (Max)	Ripple Current	ESR (Equivalent Series Resistance)	Mounting Type
Panasonic Electronic Components EET-HC2E391JA	Can - Snap-In Radial	2000 Hrs	General Purpose	0.984 in	390 µF	1.063 in	250 V	Polar	20 %	0.394 in	-40 °C	105 °C	1.3 A 1.82 A	425 mOhm	Through Hole
Panasonic Electronic Components EET-HC2S331CA	Can - Snap-In Radial	2000 Hrs	General Purpose	0.984 in	330 µF	2.047 in	420 V	Polar	20 %	0.394 in	-25 °C	105 °C	1.42 A	553 mOhm	Through Hole
Panasonic Electronic Components EET-HC2S181CA	Can - Snap-In Radial	2000 Hrs	General Purpose	0.984 in	180 µF	1.26 in	420 V	Polar	20 %	0.394 in	-25 °C	105 °C	910 mA	1.103 Ohm	Through Hole
Panasonic Electronic Components EET-HC2S221JA	Can - Snap-In Radial	2000 Hrs	General Purpose	0.984 in	220 µF	1.457 in	420 V	Polar	20 %	0.394 in	-25 °C	105 °C	1.05 A 1.47 A	829 mOhm	Through Hole
Panasonic Electronic Components EET-HC2W121BA	Can - Snap-In Radial	2000 Hrs	General Purpose	0.866 in	120 µF	1.457 in	450 V	Polar	20 %	0.394 in	-25 °C	105 °C	1.01 A 720 mA	1.52 Ohm	Through Hole
Panasonic Electronic Components EET-HC2S561EA	Can - Snap-In Radial	2000 Hrs	General Purpose	1.378 in	560 µF	1.85 in	420 V	Polar	20 %	0.394 in	-25 °C	105 °C	1.9 A	326 mOhm	Through Hole
Panasonic Electronic Components EET-HC2D561BA	Can - Snap-In Radial	2000 Hrs	General Purpose	0.866 in	560 µF	1.26 in	200 VDC	Polar	20 %	0.394 in	-40 °C	105 °C	1.67 A 2.34 A	355 mOhm	Through Hole
Panasonic Electronic Components EET-HC2D471HA	Can - Snap-In Radial	2000 Hrs	General Purpose	0.866 in	470 µF	1.26 in	200 VDC	Polar	20 %	0.394 in	-40 °C	105 °C	1.45 A 2.03 A	423 mOhm	Through Hole
Panasonic Electronic Components EET-HC2S271JA	Can - Snap-In Radial	2000 Hrs	General Purpose	0.984 in	270 µF	1.654 in	420 V	Polar	20 %	0.394 in	-25 °C	105 °C	1.2 A 1.68 A	675 mOhm	Through Hole
Panasonic Electronic Components EET-HC2W151CA	Can - Snap-In Radial	2000 Hrs	General Purpose	0.984 in	150 µF	1.26 in	450 V	Polar	20 %	0.394 in	-25 °C	105 °C	1.11 A 790 mA	1.216 Ohm	Through Hole
