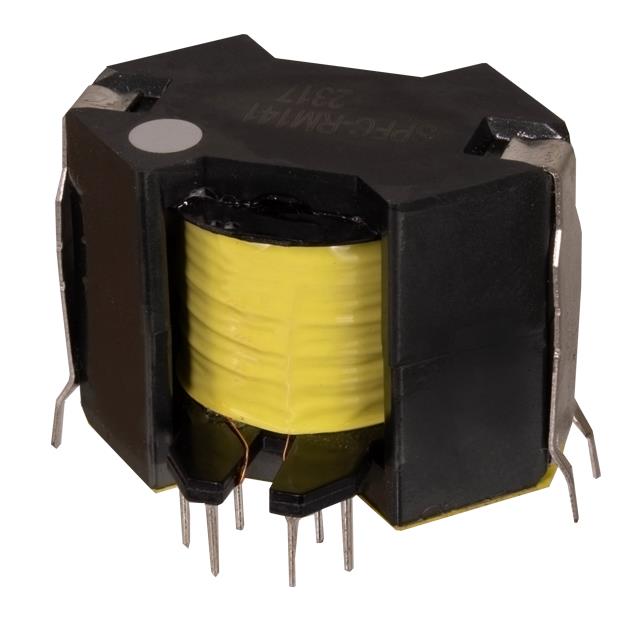

SPFC-RM14-200
ActiveSignal Transformer
PWR FACTOR COR RM14 PCB 200W
SPFC-RM14-200
ActiveSignal Transformer
PWR FACTOR COR RM14 PCB 200W
Description
General part information
SPFC-RM14-200
225 µH Shielded Wirewound Inductor 2.4 A 87mOhm Max Radial, Vertical, 16 Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | SPFC-RM14-200 |
|---|---|
| Current - Saturation (Isat) | 12.4 A |
| Current Rating | 2.4 A |
| DC Resistance (DCR) (Max) | 87 mOhm |
| Height - Seated (Max) | 1.26 in |
| Inductance | 225 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 16 Leads |
| Package Name | Vertical, Radial, 16 Leads |
| Shielding | Shielded |
| Size / Dimension Length | 1.693 in |
| Size / Dimension Width | 1.89 in |
| Tolerance | 10 % |
| Type | Wirewound |
