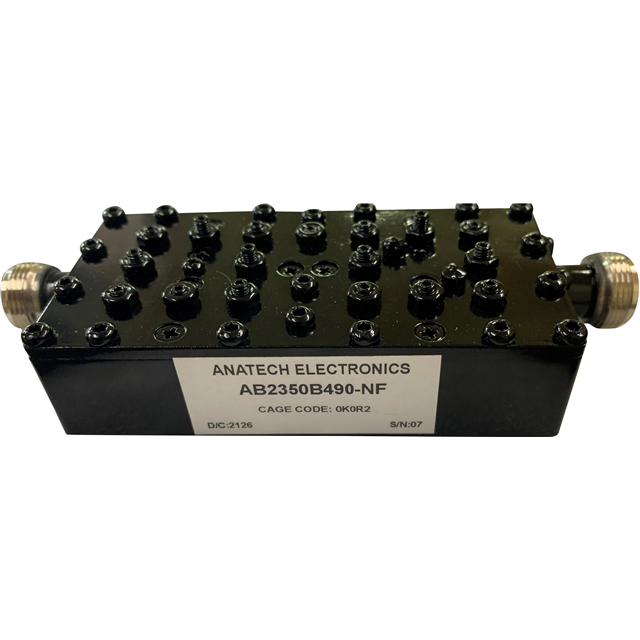

AB2350B490-NF
ActiveAnatech Electronics Inc.
RF FILTER BAND PASS 2.35GHZ MOD
AB2350B490-NF
ActiveAnatech Electronics Inc.
RF FILTER BAND PASS 2.35GHZ MOD
Description
General part information
AB2350B490-NF
2.35GHz Center Frequency Band Pass RF Filter (Radio Frequency) 100MHz Bandwidth 1.7dB Module
Technical Specifications
Parameters and characteristics for this part
| Specification | AB2350B490-NF |
|---|---|
| Bandwidth | 100 MHz |
| Filter Type | Band Pass |
| Frequency (Center) | 2.35 GHz |
| Height (Max) | 0.827 in |
| Insertion Loss | 1.7 dB |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Size / Dimension Length | 3.543 in |
| Size / Dimension Width | 1.811 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
