Description
General part information

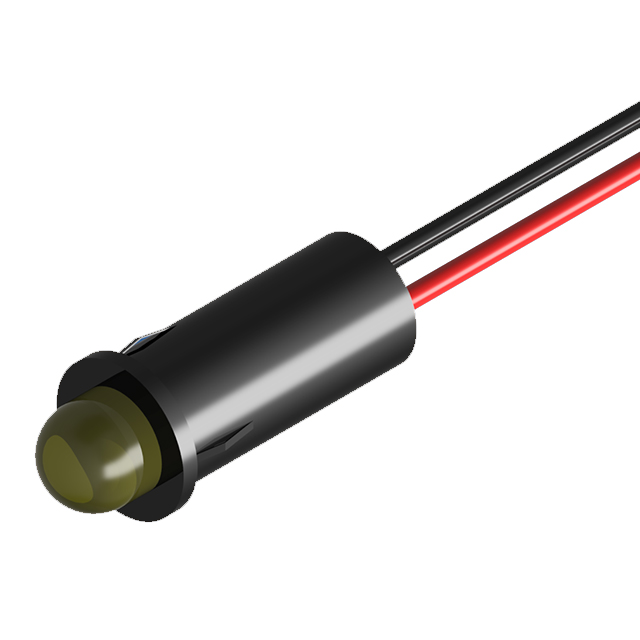

PL520-1Y01-2
LED Panel Indicator Yellow Diffused 30° 2.1V Wire Leads - 6" (152.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | PL520-1Y01-2 |
|---|---|
| Lamp Color | Yellow |
| Lens Color | Yellow |
| Lens Style | Round, Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 33 mcd |
| Panel Cutout Dimension | 0.25 " |
| Panel Cutout Shape | Round |
| Ratings | If (Max), Vf (Typ) |
| Termination Length | 6 in |
| Termination Style | Wire Leads |
| Type | LED |
| Viewing Angle | 30 ° |
| Voltage | 2.1 V |
| Wavelength - Peak | 585 nm |
