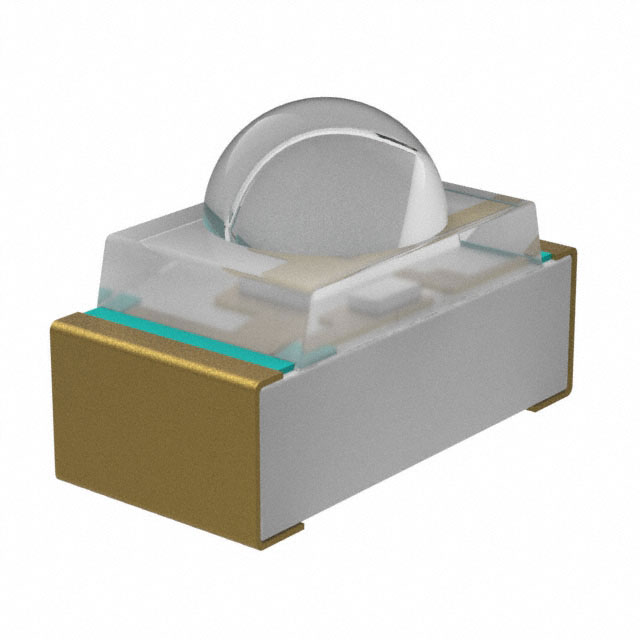

SML-LXIL0603USBCTR

Active

Lumex Opto/Components Inc.

LED BLUE CLEAR SMD

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED BLUE CLEAR SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

LED BLUE CLEAR SMD

Part	Current - Test	Mounting Type	Color	Lens Transparency	Voltage - Forward (Vf) (Typ)	Lens Style	Viewing Angle	Millicandela Rating	Size / Dimension [y]	Size / Dimension [x]	Lens Color	Height (Max) [Max] [z]	Package / Case	Wavelength - Peak
Lumex Opto/Components Inc. SML-LXIL0603USBCTR	20 mA	Surface Mount	Blue	Clear	3 V	Round with Domed Top	75 °	500 mcd	0.84 mm	1.64 mm	Colorless	1.4 mm	0603 (1608 Metric)
Lumex Opto/Components Inc. SML-LXIL0603SIC-TR	20 mA	Surface Mount	Red	Clear	2.1 V	Round with Domed Top	75 °	1600 mcd	0.84 mm	1.64 mm	Colorless	1.4 mm	0603 (1608 Metric)	630 nm
Lumex Opto/Components Inc. SML-LXIL0603UPGCTR	20 mA	Surface Mount	Green	Clear	3 V	Round with Domed Top	75 °	2135 mcd	0.84 mm	1.64 mm	Colorless	1.4 mm	0603 (1608 Metric)	520 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Blue LED Indication - Discrete 3V 0603 (1608 Metric)
