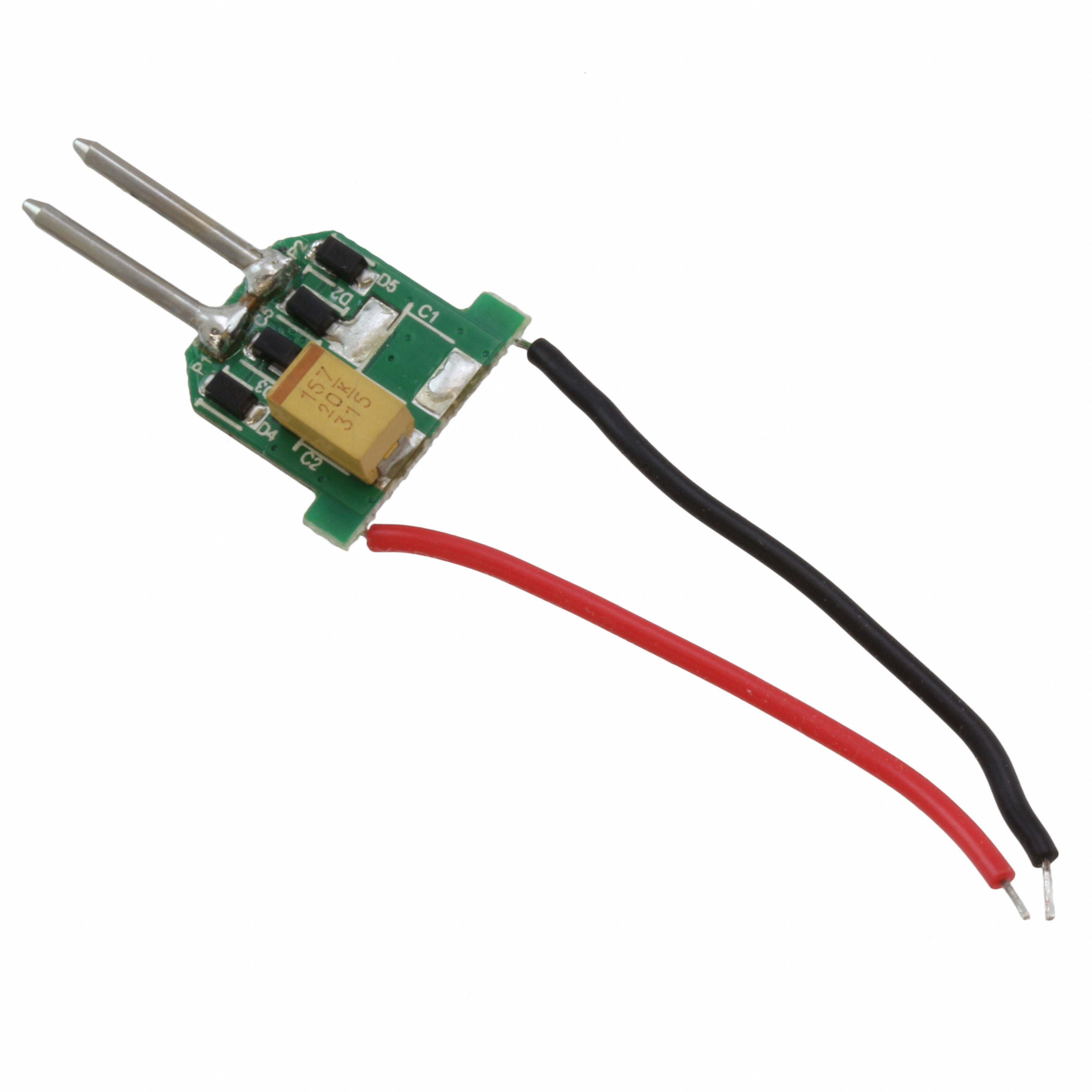

AL8807EV2

Diodes Inc

EVAL BOARD FOR AL8807

Search across all available documentation for this part.

Diodes Inc

EVAL BOARD FOR AL8807

Technical Specifications

Parameters and characteristics for this part

Specification	AL8807EV2

Current - Output / Channel [custom]	1 A
Features	Dimmable
Outputs and Type	1 Non-Isolated Output
Supplied Contents	Board(s)
Utilized IC / Part	AL8807
Voltage - Input [Max]	36 V
Voltage - Input [Min]	6 V

NRND = Not Recommended for New Design

Part	Frequency	Qualification	Topology	Mounting Type	Current - Output / Channel	Supplier Device Package	Number of Outputs	Voltage - Supply (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Package / Case [custom]	Type	Voltage - Supply (Min) [Min]	Dimming	Grade	Internal Switch(s)	Current - Output / Channel [custom]	Supplied Contents	Features	Outputs and Type	Utilized IC / Part	Voltage - Input [Max]	Voltage - Input [Min]
Diodes Inc AL8807QMP-13	1 MHz	AEC-Q100	Step-Down (Buck)	Surface Mount	1.3 A	8-MSOP-EP	1	30 V	-40 °C	125 ¯C	8-MSOP 8-TSSOP Exposed Pad	0.118 in 3 mm	DC DC Regulator	6 V	Analog PWM	Automotive
Diodes Inc AL8807EV2																		1 A	Board(s)	Dimmable	1 Non-Isolated Output	AL8807	36 V	6 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 67.55

General part information

NRND = Not Recommended for New Design

Technical documentation and resources

No documents available
