Description
General part information

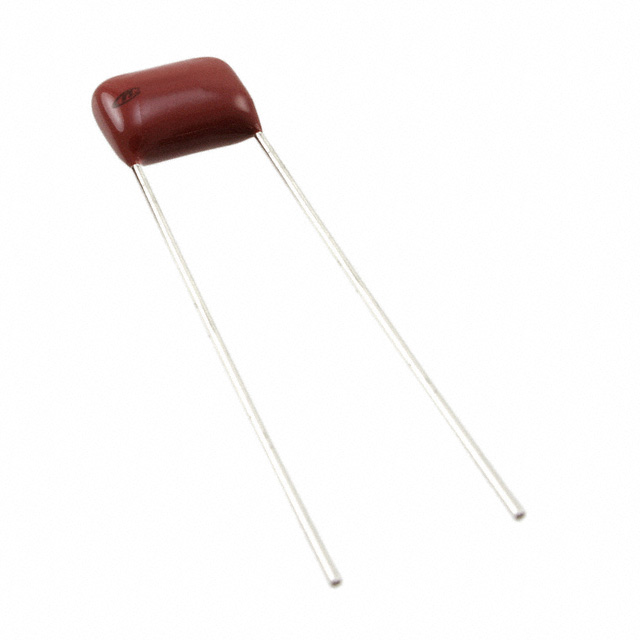

QXL2B223KTPT
0.022 µF Film Capacitor 125V Polyester, Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | QXL2B223KTPT |
|---|---|
| Applications | Switching, High Frequency |
| Capacitance | 0.022 µF |
| Dielectric Material | Polyester, Metallized |
| Height - Seated (Max) | 0.37 in |
| Lead Spacing | 0.295 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial |
| Size / Dimension Length | 0.433 in |
| Size / Dimension Width | 0.169 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 125 V |
