NJM8830KW1-TE3
ActiveNisshinbo Micro Devices Inc.
ULTRALOW DISTORTION, ULTRALOW NO
NJM8830KW1-TE3
ActiveNisshinbo Micro Devices Inc.
ULTRALOW DISTORTION, ULTRALOW NO
Description
General part information
NJM8830KW1-TE3
Audio Amplifier 2 Circuit Rail-to-Rail DFN8-W1 (ESON8-W1)
Technical Specifications
Parameters and characteristics for this part
| Specification | NJM8830KW1-TE3 |
|---|---|
| Amplifier Type | Audio |
| Current - Input Bias | 150 nA |
| Current - Output / Channel | 100 mA |
| Current - Supply | 6.5 mA |
| Gain Bandwidth Product | 90 MHz |
| Mounting Type | Surface Mount |
| Number of Circuits | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | Rail-to-Rail |

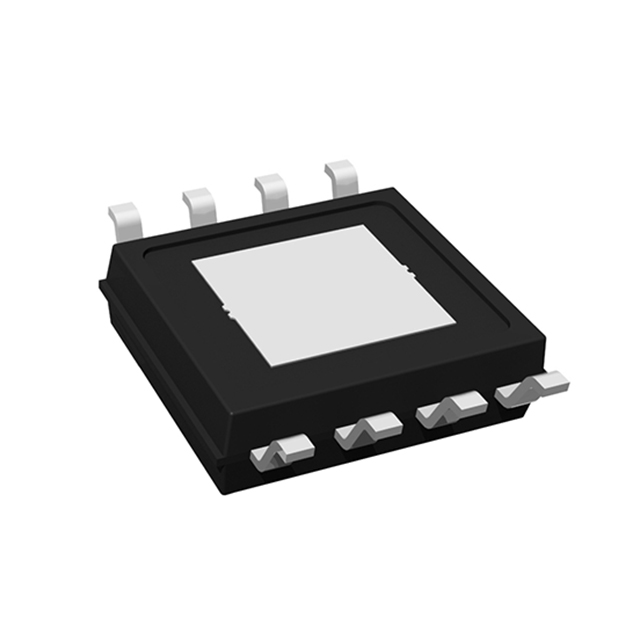

| Package / Case | 8-WFDFN Exposed Pad |
| Package Name | DFN8-W1 (ESON8-W1) |
| Slew Rate | 30 V/µs |
| Voltage - Input Offset | 500 µV |
| Voltage - Supply Span (Min) | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
