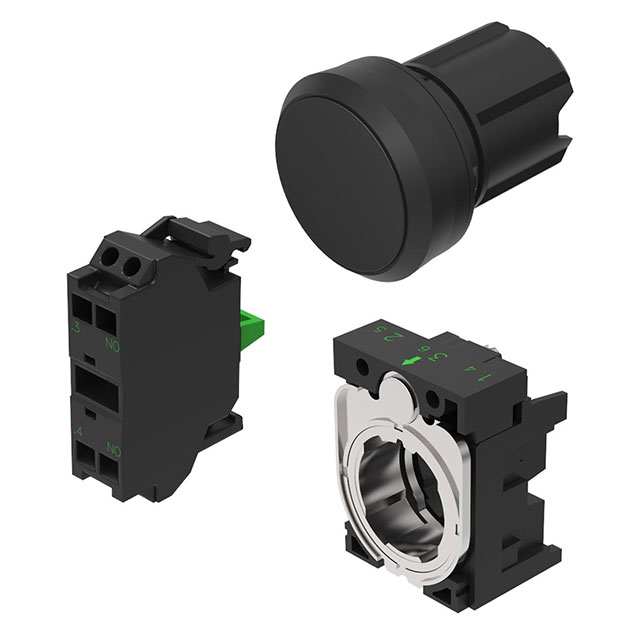

Specification	45-1131.1110.000.402

Actuator Marking	No Marking
Actuator Type	Round, Flush, Button
Circuit	SPST-NC
Color - Actuator/Cap	Black
Current Rating	10 A
Ingress Protection Description	Waterproof, Water Resistant, Dust Tight
Ingress Protection IP Rating	IP66, IP67, IP69K
Mechanical Life (Cycles)	10000000 Cycles
Mounting Type	Front, Panel Mount
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-25 °C
Switch Function	On-Mom
Termination Style	Spring Terminal
Type	Standard
Voltage Rating - AC	500 V
Voltage Rating - DC	500 V

45-1131 Series

Part	Mechanical Life (Cycles)	Voltage Rating - DC	Circuit	Voltage Rating - AC	Color - Actuator/Cap	Current Rating	Mounting Type	Actuator Marking	Termination Style	Type	Switch Function	Ingress Protection IP Rating	Ingress Protection Description	Operating Temperature (Max)	Operating Temperature (Min)	Actuator Type
EAO 45-1131.1210.000.102	10000000 Cycles	500 V	SPST-NC	500 V	Black	10 A	Front Panel Mount	No Marking	Screw Terminal	Standard	On-Mom	IP66 IP67 IP69K	Dust Tight Water Resistant Waterproof	70 °C	-25 °C	Button Round
EAO 45-1131.3120.000.101	10000000 Cycles	500 V	SPST-NO	500 V	Red	10 A	Front Panel Mount	No Marking	Screw Terminal	Standard	Off-Mom	IP66 IP67 IP69K	Dust Tight Water Resistant Waterproof	70 °C	-25 °C	Button Flush Round
EAO 45-1131.1160.000.101	10000000 Cycles	500 V	SPST-NO	500 V	Blue	10 A	Front Panel Mount	No Marking	Screw Terminal	Standard	Off-Mom	IP66 IP67 IP69K	Dust Tight Water Resistant Waterproof	70 °C	-25 °C	Button Flush Round
EAO 45-1131.2160.000.101	10000000 Cycles	500 V	SPST-NO	500 V	Blue	10 A	Front Panel Mount	No Marking	Screw Terminal	Standard	Off-Mom	IP66 IP67 IP69K	Dust Tight Water Resistant Waterproof	70 °C	-25 °C	Button Flush Round
EAO 45-1131.3220.000.102	10000000 Cycles	500 V	SPST-NC	500 V	Red	10 A	Front Panel Mount	No Marking	Screw Terminal	Standard	On-Mom	IP66 IP67 IP69K	Dust Tight Water Resistant Waterproof	70 °C	-25 °C	Button Round
EAO 45-1131.3190.000.101	10000000 Cycles	500 V	SPST-NO	500 V	White	10 A	Front Panel Mount	No Marking	Screw Terminal	Standard	Off-Mom	IP66 IP67 IP69K	Dust Tight Water Resistant Waterproof	70 °C	-25 °C	Button Flush Round
EAO 45-1131.3120.000.102	10000000 Cycles	500 V	SPST-NC	500 V	Red	10 A	Front Panel Mount	No Marking	Screw Terminal	Standard	On-Mom	IP66 IP67 IP69K	Dust Tight Water Resistant Waterproof	70 °C	-25 °C	Button Flush Round
EAO 45-1131.2140.000.101	10000000 Cycles	500 V	SPST-NO	500 V	Yellow	10 A	Front Panel Mount	No Marking	Screw Terminal	Standard	Off-Mom	IP66 IP67 IP69K	Dust Tight Water Resistant Waterproof	70 °C	-25 °C	Button Flush Round
EAO 45-1131.3110.000.102	10000000 Cycles	500 V	SPST-NC	500 V	Black	10 A	Front Panel Mount	No Marking	Screw Terminal	Standard	On-Mom	IP66 IP67 IP69K	Dust Tight Water Resistant Waterproof	70 °C	-25 °C	Button Flush Round
EAO 45-1131.2120.000.101	10000000 Cycles	500 V	SPST-NO	500 V	Red	10 A	Front Panel Mount	No Marking	Screw Terminal	Standard	Off-Mom	IP66 IP67 IP69K	Dust Tight Water Resistant Waterproof	70 °C	-25 °C	Button Flush Round
