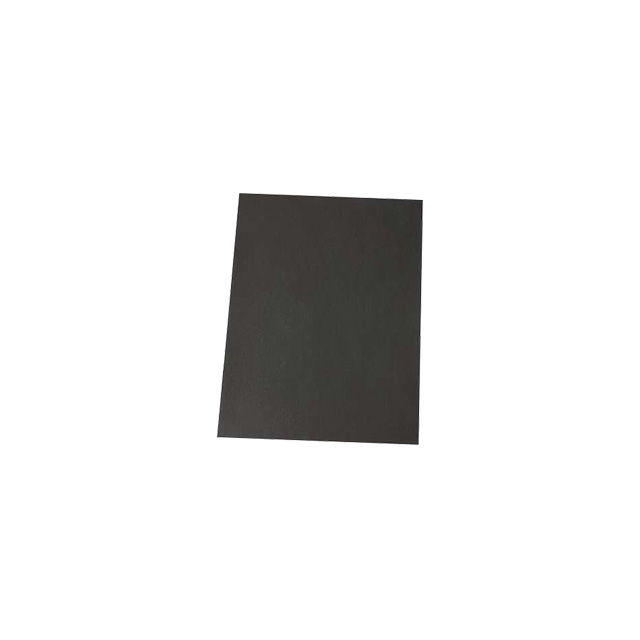

3M AB5030HF 1.03" X 4YD

Active

3M (TC)

RF EMI ABSORB SHEET 1.03"X0.144"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3M AB5030HF 1.03" X 4YD

Active

3M (TC)

RF EMI ABSORB SHEET 1.03"X0.144"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3M AB5030HF 1.03" X 4YD

Adhesive	Acrylic, Pressure Sensitive Adhesive (PSA), Non-Conductive, Double Sided
Length [x]	26.16 mm
Length [x]	1.03 in
Material	Metal Flakes, Polymer Resin
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shape	Rectangular
Shelf Life	12 Months
Shelf Life Start	Date of Shipment
Storage/Refrigeration Temperature	71 °F
Storage/Refrigeration Temperature	21 °C
Thickness - Overall	0.014 in
Thickness - Overall	0.35 mm
Type	Absorbing Sheet
Width [x]	0.144 in
Width [x]	3.65 mm

AB5030HF Series

Part	Type	Adhesive	Operating Temperature [Min]	Operating Temperature [Max]	Shape	Shelf Life Start	Thickness - Overall	Thickness - Overall	Shelf Life	Width [y]	Width [y]	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Material	Length	Length	Width [x]	Width [x]	Width	Width	Length [x]	Length [x]
3M (TC) 3M AB5030HF 8.26" X 12"-6/PK	Absorbing Sheet	Acrylic Pressure Sensitive Adhesive (PSA) Non-Conductive Double Sided	-25 °C	85 °C	Rectangular	Date of Shipment	0.014 in	0.35 mm	12 Months	8.26 in	209.8 mm	71 °F	21 °C	Metal Flakes Polymer Resin
3M (TC) 3M AB5030HF 2" SQUARE-50/PK	Absorbing Sheet	Acrylic Pressure Sensitive Adhesive (PSA) Non-Conductive Double Sided	-25 °C	85 °C	Square	Date of Shipment	0.014 in	0.35 mm	12 Months			71 °F	21 °C	Metal Flakes Polymer Resin	50.8 mm	2 in	2 in	50.8 mm
3M (TC) 3M AB5030HF 4.13" X 4YD	Absorbing Sheet	Acrylic Pressure Sensitive Adhesive (PSA) Non-Conductive Double Sided	-25 °C	85 °C	Rectangular	Date of Shipment	0.014 in	0.35 mm	12 Months			71 °F	21 °C	Metal Flakes Polymer Resin	3.65 m	12 ft			4.13 in	104.9 mm
3M (TC) 3M AB5030HF 1" X 4"-50/PK	Absorbing Sheet	Acrylic Pressure Sensitive Adhesive (PSA) Non-Conductive Double Sided	-25 °C	85 °C	Rectangular	Date of Shipment	0.014 in	0.35 mm	12 Months			71 °F	21 °C	Metal Flakes Polymer Resin	101.6 mm	4 in	1 in			25.4 mm
3M (TC) 3M AB5030HF 0.75" CIRCLE-50/PK	Absorbing Sheet	Acrylic Pressure Sensitive Adhesive (PSA) Non-Conductive Double Sided	-25 °C	85 °C	Circular	Date of Shipment	0.014 in	0.35 mm	12 Months	0.75 in	19.05 mm	71 °F	21 °C	Metal Flakes Polymer Resin
3M (TC) 3M AB5030HF 1" CIRCLE-50/PK	Absorbing Sheet	Acrylic Pressure Sensitive Adhesive (PSA) Non-Conductive Double Sided	-25 °C	85 °C	Circular	Date of Shipment	0.014 in	0.35 mm	12 Months			71 °F	21 °C	Metal Flakes Polymer Resin			1 in			25.4 mm
3M (TC) 3M AB5030HF 0.75" X 3"-50/PK	Absorbing Sheet	Acrylic Pressure Sensitive Adhesive (PSA) Non-Conductive Double Sided	-25 °C	85 °C	Rectangular	Date of Shipment	0.014 in	0.35 mm	12 Months	0.75 in	19.05 mm	71 °F	21 °C	Metal Flakes Polymer Resin	76.2 mm	3 in
3M (TC) 3M AB5030HF 1.03" X 4YD	Absorbing Sheet	Acrylic Pressure Sensitive Adhesive (PSA) Non-Conductive Double Sided	-25 °C	85 °C	Rectangular	Date of Shipment	0.014 in	0.35 mm	12 Months			71 °F	21 °C	Metal Flakes Polymer Resin			0.144 in	3.65 mm			26.16 mm	1.03 in
3M (TC) 3M AB5030HF 0.5" SQUARE-50/PK	Absorbing Sheet	Acrylic Pressure Sensitive Adhesive (PSA) Non-Conductive Double Sided	-25 °C	85 °C	Square	Date of Shipment	0.014 in	0.35 mm	12 Months			71 °F	21 °C	Metal Flakes Polymer Resin	12.7 mm	0.5 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 118.55
		10	$ 112.94
		25	$ 110.54

Description

General part information

AB5030HF Series

RF EMI Absorbing Sheet AB5000HF Polymer Resin, Metal Flakes Acrylic, Pressure Sensitive Adhesive (PSA), Non-Conductive, Double Sided 0.144" (3.65mm) X 1.030" (26.16mm) X 0.014" (0.35mm)
