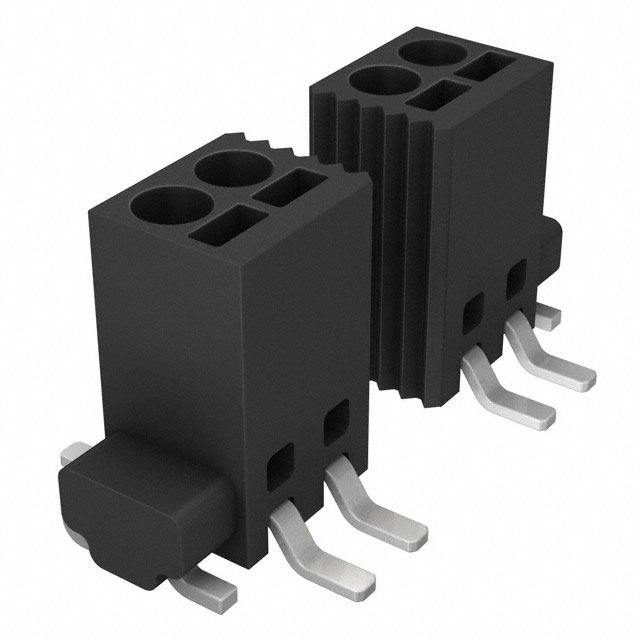

XW4L-08A1-V1

Active

Omron Electronics Inc-EMC Div

TERM BLK 8POS TOP ENT 2.54MM SMD

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

TERM BLK 8POS TOP ENT 2.54MM SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XW4L-08A1-V1	XW4L Series

Color	Black	Black
Contact Material - Plating	Copper Alloy - Tin Plated	Copper Alloy - Tin Plated
Current	6 A	6 A
Features	Board Guide	Board Guide
Housing Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Mating Orientation	Vertical with Board	Horizontal with Board, Vertical with Board
Mounting Type	Surface Mount	Surface Mount
Number of Levels	1	1
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-45 °C	-45 °C
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Positions Per Level	8	6 - 10
Voltage	160 V	160 V
Wire Gauge [Max]	26 AWG	26 AWG
Wire Gauge [Min]	20 AWG	20 AWG
Wire Termination	Push-In Spring, Screwless - Leg Spring	Push-In Spring, Screwless - Leg Spring

TERM BLK 8P SIDE ENT 2.54MM SMD

Part	Housing Material	Voltage	Number of Levels	Features	Positions Per Level	Wire Gauge [Min]	Wire Gauge [Max]	Pitch [x]	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Color	Contact Material - Plating	Mating Orientation	Wire Termination	Mounting Type	Current
Omron Electronics Inc-EMC Div XW4L-08A1-H1	Liquid Crystal Polymer (LCP)	160 V	1	Board Guide	8	20 AWG	26 AWG	2.54 mm	0.1 in	125 °C	-45 °C	Black	Copper Alloy - Tin Plated	Horizontal with Board	Push-In Spring, Screwless - Leg Spring	Surface Mount	6 A
Omron Electronics Inc-EMC Div XW4L-06A1-H1	Liquid Crystal Polymer (LCP)	160 V	1	Board Guide	6	20 AWG	26 AWG	2.54 mm	0.1 in	125 °C	-45 °C	Black	Copper Alloy - Tin Plated	Horizontal with Board	Push-In Spring, Screwless - Leg Spring	Surface Mount	6 A
Omron Electronics Inc-EMC Div XW4L-08A1-V1	Liquid Crystal Polymer (LCP)	160 V	1	Board Guide	8	20 AWG	26 AWG	2.54 mm	0.1 in	125 °C	-45 °C	Black	Copper Alloy - Tin Plated	Vertical with Board	Push-In Spring, Screwless - Leg Spring	Surface Mount	6 A
Omron Electronics Inc-EMC Div XW4L-10A1-H1	Liquid Crystal Polymer (LCP)	160 V	1	Board Guide	10	20 AWG	26 AWG	2.54 mm	0.1 in	125 °C	-45 °C	Black	Copper Alloy - Tin Plated	Horizontal with Board	Push-In Spring, Screwless - Leg Spring	Surface Mount	6 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Wire to Board Terminal Block Vertical with Board 0.100" (2.54mm) Surface Mount
