P08-040PLC-B-G

Active

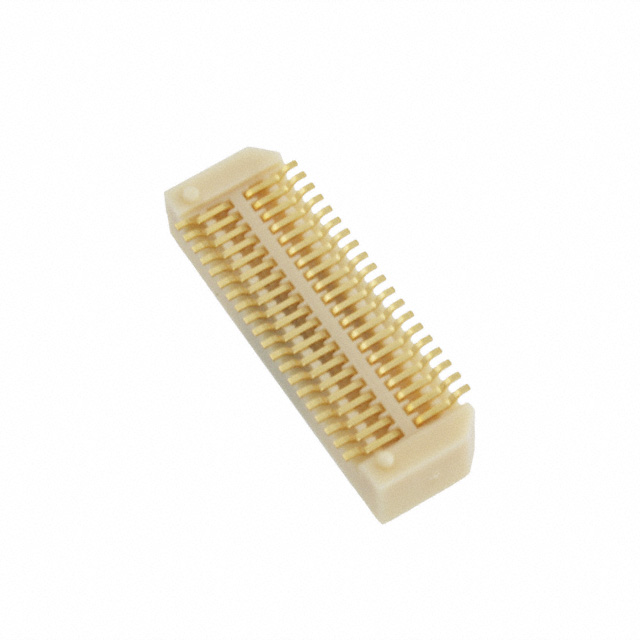

CONN PLUG 40POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

P08-040PLC-B-G

Active

CONN PLUG 40POS SMD GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

P08 Series

40 Position Connector Plug, Center Strip Contacts Surface Mount Gold

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	P08-040PLC-B-G	P08 Series

Connector Type	-	Socket, Outer Shroud Contacts, Self Mating, Non-Gendered, Hermaphroditic
Contact Finish	Gold	Gold
Contact Finish Thickness	8 çin	8 çin
Contact Finish Thickness	0.203 çm	0.203 çm
Features	Board Guide	Board Guide, Solder Retention
Height Above Board	3.72 mm	2.2 - 8.35 mm
Height Above Board	0.147 in	0.087 - 0.329 in
Height Above Board	-	2.72 mm
Height Above Board	-	0.107 in
Mated Stacking Heights	7 mm, 4 mm	3 - 11.5 mm
Mated Stacking Heights	-	3 - 5 mm
Mounting Type	Surface Mount	Surface Mount
Number of Positions	40	20 - 100
Number of Rows	2	2
Pitch [x]	0.8 mm	0.8 mm
Pitch [x]	0.031 in	0.031 in

P08 Series

CONN SOCKET 20POS SMD GOLD

Part	Contact Finish	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Features	Connector Type	Mounting Type	Mated Stacking Heights [z]	Height Above Board	Height Above Board	Number of Positions	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]
3M P08-020SL-A-G	Gold	2	8 çin	0.203 çm	0.8 mm	0.031 in	Board Guide	Outer Shroud Contacts, Socket	Surface Mount	3 mm, 4 mm, 5 mm	0.087 in	2.2 mm	20
3M P08-020-PLT-A-G	Gold	2	8 çin	0.203 çm	0.8 mm	0.031 in	Board Guide		Surface Mount				20	3 mm, 6 mm	2.72 mm	0.107 in
3M P08-050SLC-B-G	Gold	2	8 çin	0.203 çm	0.8 mm	0.031 in	Board Guide	Outer Shroud Contacts, Socket	Surface Mount		0.205 in	5.2 mm	50	6 mm, 7 mm, 8 mm
3M P08-060SLC-A-G	Gold	2	8 çin	0.203 çm	0.8 mm	0.031 in	Board Guide	Outer Shroud Contacts, Socket	Surface Mount	3 mm, 4 mm, 5 mm	0.087 in	2.2 mm	60
3M P08-020SLTC-A-G	Gold	2	8 çin	0.203 çm	0.8 mm	0.031 in	Board Guide	Outer Shroud Contacts, Socket	Surface Mount	3 mm, 4 mm, 5 mm	0.087 in	2.2 mm	20
3M P08-020SL-B-G	Gold	2	8 çin	0.203 çm	0.8 mm	0.031 in	Board Guide	Outer Shroud Contacts, Socket	Surface Mount		0.205 in	5.2 mm	20	6 mm, 7 mm, 8 mm
3M P08-030PLC-B-G	Gold	2	8 çin	0.203 çm	0.8 mm	0.031 in	Board Guide		Surface Mount		0.147 in	3.72 mm	30	4 mm, 7 mm
3M P08-040HLTCW-E-G	Gold	2	8 çin	0.203 çm	0.8 mm	0.031 in	Board Guide, Solder Retention	Self Mating, Non-Gendered, Hermaphroditic	Surface Mount		0.329 in	8.35 mm	40	11.5 mm
3M P08-030PLTC-A-G	Gold	2	8 çin	0.203 çm	0.8 mm	0.031 in	Board Guide		Surface Mount				30	3 mm, 6 mm	2.72 mm	0.107 in
3M P08-080SL-A-G	Gold	2	8 çin	0.203 çm	0.8 mm	0.031 in	Board Guide	Outer Shroud Contacts, Socket	Surface Mount	3 mm, 4 mm, 5 mm	0.087 in	2.2 mm	80
