2-927768-1
ActiveTE Connectivity AMP Connectors

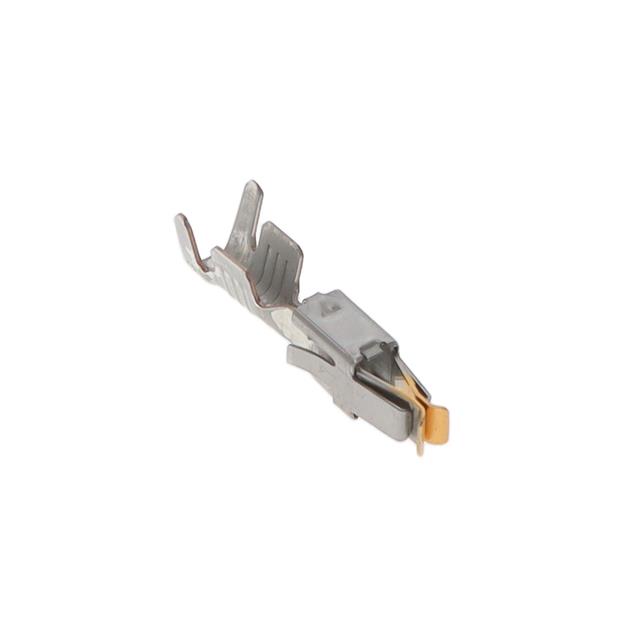

CONN SOCKET 13-17AWG CRIMP GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2-927768-1
ActiveTE Connectivity AMP Connectors
CONN SOCKET 13-17AWG CRIMP GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2-927768-1 | 927768 Series |
|---|---|---|
| Contact Finish | Gold | Silver, Tin, Gold |
| Contact Finish Thickness | 31.5 µin | 30 - 39.4 Áin |
| Contact Finish Thickness | 0.8 µm | 0.76 - 1 Ám |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Socket | Socket |
| Type | Power | Power |
| Wire Gauge [Max] | 17 AWG | 17 AWG |
| Wire Gauge [Min] | 13 AWG | 13 AWG |
927768 Series
CONN SOCKET 13-17AWG CRIMP SILVR
| Part | Wire Gauge [Min] | Wire Gauge [Max] | Contact Finish | Pin or Socket | Type | Contact Termination | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 927768-6 | 13 AWG | 17 AWG | Silver | Socket | Power | Crimp | 0.76 Ám | 30 Áin |
TE Connectivity AMP Connectors 927768-3 | 13 AWG | 17 AWG | Tin | Socket | Power | Crimp | 1 Ám | 39.4 Áin |
TE Connectivity AMP Connectors 927768-1 | 13 AWG | 17 AWG | Tin | Socket | Power | Crimp | 1 Ám | 39.4 Áin |
TE Connectivity AMP Connectors 1-927768-1 | 13 AWG | 17 AWG | Gold | Socket | Power | Crimp | 0.8 µm | 31.5 µin |
TE Connectivity AMP Connectors 2-927768-1 | 13 AWG | 17 AWG | Gold | Socket | Power | Crimp | 0.8 µm | 31.5 µin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.80 | |
| 10 | $ 0.66 | |||
| 25 | $ 0.61 | |||
| 50 | $ 0.58 | |||
| 100 | $ 0.55 | |||
| 250 | $ 0.51 | |||
| 500 | $ 0.48 | |||
| 1000 | $ 0.45 | |||
| Tape & Reel (TR) | 3300 | $ 0.41 | ||
| 6600 | $ 0.39 | |||
| 9900 | $ 0.38 | |||
| 16500 | $ 0.36 | |||
| 23100 | $ 0.35 | |||
Description
General part information
927768 Series
Socket Contact Gold 13-17 AWG Crimp Power
