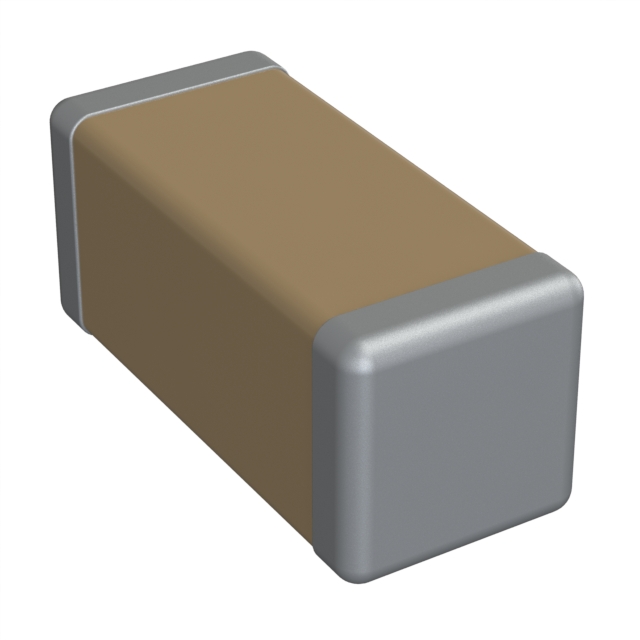

1808J1K00181KCT

Active

Knowles Syfer

CAP CER 180PF 1KV C0G/NP0 1808

Deep-Dive with AI

Search across all available documentation for this part.

1808J1K00181KCT

Active

Knowles Syfer

CAP CER 180PF 1KV C0G/NP0 1808

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1808J1K00181KCT	1808J Series

Applications	General Purpose	General Purpose, High Reliability, Safety
Capacitance	180 pF	0.001 - 100000 pF
Features	-	High Temperature, High Voltage
Mounting Type	Surface Mount, MLCC	Surface Mount, MLCC
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	1808	1808
Package / Case	4520 Metric	4520 Metric
Ratings	-	X1, X2
Size / Dimension [x]	0.177 in	0.177 in
Size / Dimension [x]	4.5 mm	4.5 mm
Size / Dimension [y]	0.079 in	0.079 in
Size / Dimension [y]	2 mm	2 mm
Temperature Coefficient	NP0 (1B), C0G	NP0 (1B), C0G, NP0, X7R
Thickness (Max) [Max]	2 mm	2 mm
Thickness (Max) [Max]	0.079 in	0.079 in
Tolerance	10 %	0.1 - 20 %
Voltage - Rated	1 kV	1 - 6 kV
Voltage - Rated	1000 V	2.5 - 6000 VDC
Voltage - Rated	-	16 V
Voltage - Rated	-	1.2 kV
Voltage - Rated	-	1200 V

1808J Series

CAP CER 82PF 25V C0G/NP0 1808

...

Part	Thickness (Max) [Max]	Thickness (Max) [Max]	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Capacitance	Tolerance	Temperature Coefficient	Voltage - Rated	Package / Case	Package / Case	Voltage - Rated [custom]	Features	Voltage - Rated	Voltage - Rated [custom]	Voltage - Rated [custom]
Knowles Syfer 1808J0250820GCT	2 mm	0.079 in	MLCC, Surface Mount	0.177 in	0.079 in	4.5 mm	2 mm	-55 °C	125 °C	General Purpose	82 pF	2 %	C0G, NP0 (1B)	25 VDC	1808	4520 Metric
Knowles Syfer 1808J0160221FFT	2 mm	0.079 in	MLCC, Surface Mount	0.177 in	0.079 in	4.5 mm	2 mm	-55 °C	125 °C	High Reliability	220 pF	1 %	C0G, NP0		1808	4520 Metric	16 V	High Temperature
Knowles Syfer 1808J2K00470GCT	2 mm	0.079 in	MLCC, Surface Mount	0.177 in	0.079 in	4.5 mm	2 mm	-55 °C	125 °C	General Purpose	47 pF	2 %	C0G, NP0 (1B)	2000 V	1808	4520 Metric			2 kV
Knowles Syfer 1808J2000152MDT	2 mm	0.079 in	MLCC, Surface Mount	0.177 in	0.079 in	4.5 mm	2 mm	-55 °C	125 °C	High Reliability	1500 pF	20 %	X7R	200 V	1808	4520 Metric		High Temperature
Knowles Syfer 1808J0500391JFT	2 mm	0.079 in	MLCC, Surface Mount	0.177 in	0.079 in	4.5 mm	2 mm	-55 °C	125 °C	High Reliability	390 pF	5 %	C0G, NP0	50 VDC	1808	4520 Metric		High Temperature
Knowles Syfer 1808J1K00222JDT	2 mm	0.079 in	MLCC, Surface Mount	0.177 in	0.079 in	4.5 mm	2 mm	-55 °C	125 °C	High Reliability	2200 pF	5 %	X7R	1000 V	1808	4520 Metric		High Temperature	1 kV
Knowles Syfer 1808J1K20331JCT	2 mm	0.079 in	MLCC, Surface Mount	0.177 in	0.079 in	4.5 mm	2 mm	-55 °C	125 °C	General Purpose	330 pF	5 %	C0G, NP0 (1B)		1808	4520 Metric				1.2 kV	1200 V
Knowles Syfer 1808J2508P20BCT	2 mm	0.079 in	MLCC, Surface Mount	0.177 in	0.079 in	4.5 mm	2 mm	-55 °C	125 °C	General Purpose	8.2 pF	0.1 pF	C0G, NP0 (1B)	250 V	1808	4520 Metric
Knowles Syfer 1808J0160101JXT	2 mm	0.079 in	MLCC, Surface Mount	0.177 in	0.079 in	4.5 mm	2 mm	-55 °C	125 °C	General Purpose	100 pF	5 %	X7R		1808	4520 Metric	16 V
Knowles Syfer 1808J0160124MDT	2 mm	0.079 in	MLCC, Surface Mount	0.177 in	0.079 in	4.5 mm	2 mm	-55 °C	125 °C	High Reliability	0.12 µF	20 %	X7R		1808	4520 Metric	16 V	High Temperature

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 0.28

Description

General part information

1808J Series

180 pF ±10% 1000V (1kV) Ceramic Capacitor C0G, NP0 (1B) 1808 (4520 Metric)
