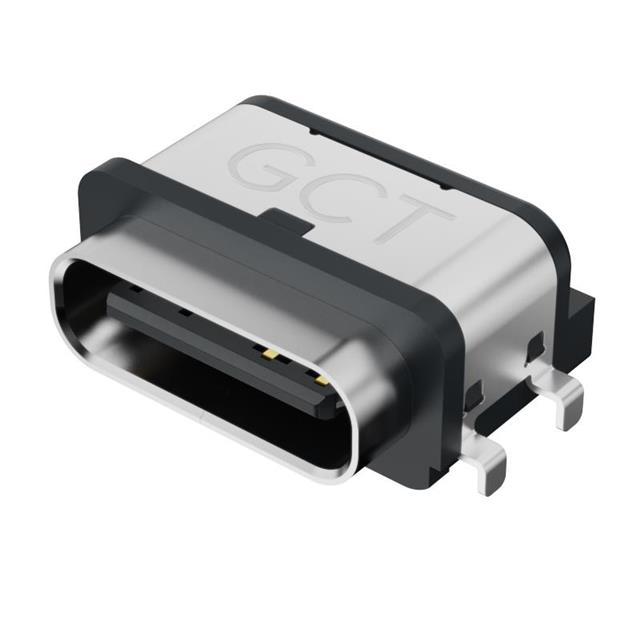

USB4715-GF-A
ActiveGCT
USB TYPE C HORZ MID-MOUNT 6P SMT
Deep-Dive with AI
Search across all available documentation for this part.
USB4715-GF-A
ActiveGCT
USB TYPE C HORZ MID-MOUNT 6P SMT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | USB4715-GF-A |
|---|---|
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Current Rating (Amps) | 3 A |
| Features | Gasket not Included, No Data, Power Only |
| Gender | Receptacle |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 20000 |
| Mounting Feature | Horizontal, Mid Mount |
| Mounting Type | Through Hole, Surface Mount, Right Angle |
| Number of Contacts | 6, 18 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Shell/Shielding Material | Stainless, Steel |
| Shielding | Shielded |
| Termination | Solder |
| Voltage - Rated | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.64 | |
| Digi-Reel® | 1 | $ 1.64 | ||
| Tape & Reel (TR) | 700 | $ 1.06 | ||
Description
General part information
USB4715-GF-A
USB-C (USB TYPE-C) Receptacle Connector 24 (6+18 Dummy) Position Surface Mount, Right Angle; Through Hole
