02160025-000

Obsolete

TE Connectivity Measurement Specialties

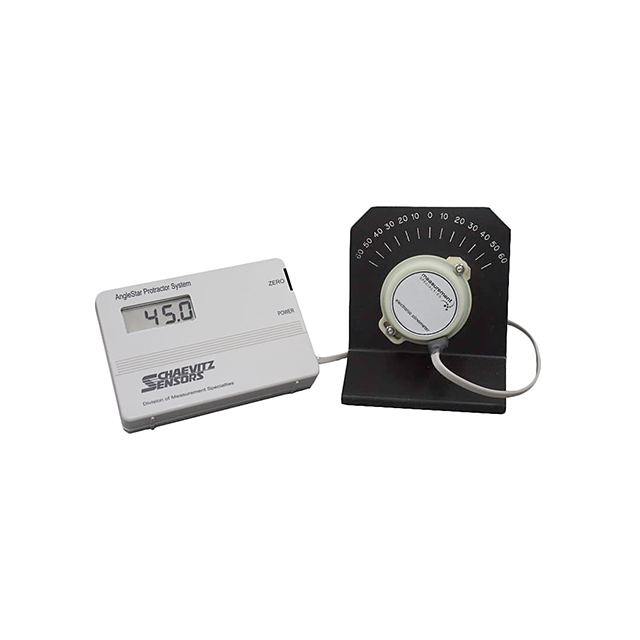

SENSOR ANGLE 90DEG CBL W/CONN

Search across all available documentation for this part.

Obsolete

TE Connectivity Measurement Specialties

SENSOR ANGLE 90DEG CBL W/CONN

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	02160025-000	0216 Series

For Measuring	Angle	Angle
Linearity	1 %	1 %
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature [Max]	55 °C	55 °C
Operating Temperature [Min]	-18 °C	-18 °C
Output	Digital Readout	Digital Readout
Package / Case	Module	Module
Rotation Angle - Electrical, Mechanical	-	39.98 °
Rotation Angle - Electrical, Mechanical [Max]	90 °	90 °
Rotation Angle - Electrical, Mechanical [Min]	0 °	0 °
Termination Style	Cable with Connector	Cable with Connector
Voltage - Supply [Max]	15 V	15 V
Voltage - Supply [Min]	9 V	9 V

SENSOR ANGLE 90DEG CBL W/CONN

Part	For Measuring	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Linearity	Rotation Angle - Electrical, Mechanical [Min]	Rotation Angle - Electrical, Mechanical [Max]	Mounting Type	Output	Rotation Angle - Electrical, Mechanical
TE Connectivity Measurement Specialties 02160025-000	Angle	Module	15 V	9 V	-18 °C	55 °C	Cable with Connector	1 %	0 °	90 °	Chassis Mount	Digital Readout
TE Connectivity Measurement Specialties 02160023-000	Angle	Module	15 V	9 V	-18 °C	55 °C	Cable with Connector	1 %			Chassis Mount	Digital Readout	39.98 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Sensor Angle Cable with Connector
