19001-10UL

Active

Grayhill Inc.

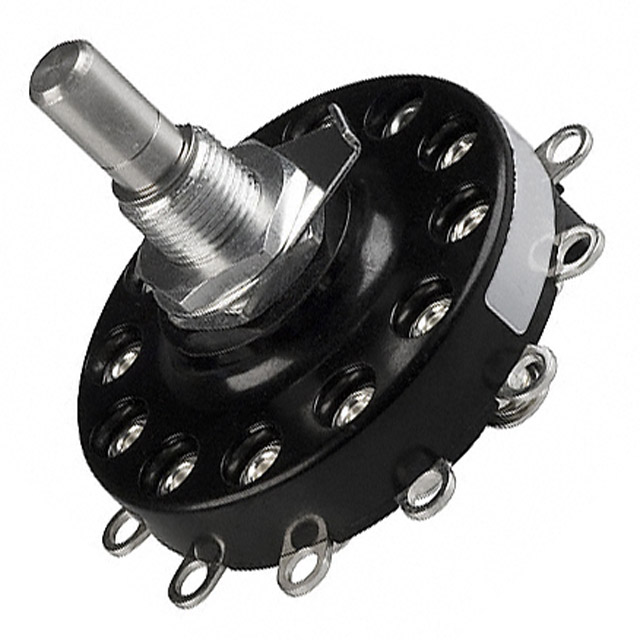

SWITCH ROTARY 10POS 15A 120V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH ROTARY 10POS 15A 120V

Technical Specifications

Parameters and characteristics commom to parts in this series

SWITCH ROTARY 6POS 15A 120V

Part	Voltage Rating - DC	Depth Behind Panel [z]	Contact Material	Number of Poles per Deck	Number of Positions	Actuator Type [diameter]	Actuator Type	Voltage Rating - AC	Current Rating (Amps)	Angle of Throw	Actuator Length [x]	Contact Timing	Index Stops	Number of Decks [custom]	Circuit per Deck	Termination Style
Grayhill Inc. 19001-06UL	120 V	24.13 mm	Silver Alloy	1	6	6.35 mm	Flatted	120 V	15A, 1A	30 °	0.5 in	Non-Shorting	Fixed	1	SP6T	Solder Lug
Grayhill Inc. 19001-10UL	120 V	24.13 mm	Silver Alloy	1	10	6.35 mm	Flatted	120 V	15A, 1A	30 °	0.5 in	Non-Shorting	Fixed	1	SP10T	Solder Lug
Grayhill Inc. 19001-07UL	120 V	24.13 mm	Silver Alloy	1	7	6.35 mm	Flatted	120 V	15A, 1A	30 °	0.5 in	Non-Shorting	Fixed	1	SP7T	Solder Lug
Grayhill Inc. 19001-04UL	120 V	24.13 mm	Silver Alloy	1	4	6.35 mm	Flatted	120 V	15A, 1A	30 °	0.5 in	Non-Shorting	Fixed	1	SP4T	Solder Lug
Grayhill Inc. 19001-02UL	120 V	24.13 mm	Silver Alloy	1	2	6.35 mm	Flatted	120 V	15A, 1A	30 °	0.5 in	Non-Shorting	Fixed	1	SPDT	Solder Lug
Grayhill Inc. 19001-03UL	120 V	24.13 mm	Silver Alloy	1		6.35 mm	Flatted	120 V	15A, 1A	30 °	0.5 in	Non-Shorting	Fixed	1	SP3T	Solder Lug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rotary Switch 10 Position SP10T 15A (AC), 1A (DC) 120 VAC Panel Mount
