1299/15C SL001
ActiveALPHA WIRE

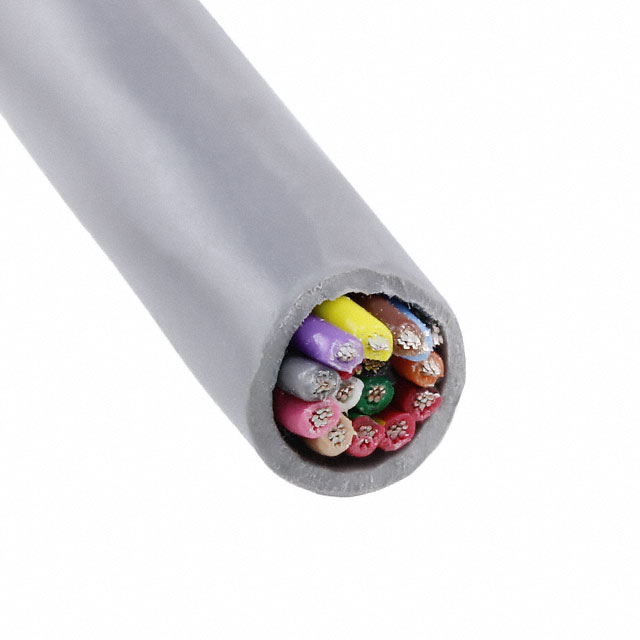

CABLE 15COND 22AWG SHLD 1000'
Deep-Dive with AI
Search across all available documentation for this part.
1299/15C SL001
ActiveALPHA WIRE
CABLE 15COND 22AWG SHLD 1000'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1299/15C SL001 | 1299/15C Series |
|---|---|---|
| Cable Type | Multi-Conductor | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned | Copper, Tinned |
| Conductor Strand [custom] | 7 | 7 |
| Conductor Strand [custom] | 30 AWG | 30 AWG |
| Features | Drain Wire | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 7.57 mm | 7.57 mm |
| Jacket (Insulation) Diameter [diameter] | 0.298 " | 0.298 " |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Slate | Slate |
| Length | 1000 ft | 1000 ft |
| Length | 304.8 m | 304.8 m |
| Length | - | 30.5 m |
| Length | - | 100 ft |
| Number of Conductors | 15 | 15 |
| Operating Temperature [Max] | 80 C | 80 C |
| Operating Temperature [Min] | -20 C | -20 C |
| Shield Coverage | 100 % | 100 % |
| Shield Material | Aluminum | Aluminum |
| Shield Type | Foil | Foil |
| Usage | Control, Communication | Control, Communication |
| Voltage | 300 V | 300 V |
| Wire Gauge | 22 AWG | 22 AWG |
1299/15C Series
CABLE 15COND 22AWG SHLD 1000'
| Part | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Usage | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Coverage | Features | Voltage | Wire Gauge | Jacket Color | Conductor Material | Operating Temperature [Min] | Operating Temperature [Max] | Shield Type | Cable Type | Shield Material | Conductor Insulation | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ALPHA WIRE 1299/15C SL001 | Poly-Vinyl Chloride (PVC) | 7 | 30 AWG | 15 | Communication, Control | 1000 ft | 304.8 m | 7.57 mm | 0.298 " | 100 % | Drain Wire | 300 V | 22 AWG | Slate | Copper, Tinned | -20 C | 80 C | Foil | Multi-Conductor | Aluminum | Poly-Vinyl Chloride (PVC) | ||
ALPHA WIRE 1299/15C SL005 | Poly-Vinyl Chloride (PVC) | 7 | 30 AWG | 15 | Communication, Control | 7.57 mm | 0.298 " | 100 % | Drain Wire | 300 V | 22 AWG | Slate | Copper, Tinned | -20 C | 80 C | Foil | Multi-Conductor | Aluminum | Poly-Vinyl Chloride (PVC) | 30.5 m | 100 ft |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 3293.28 | |
Description
General part information
1299/15C Series
15 Conductor Multi-Conductor Cable Slate 22 AWG Foil 1000.0' (304.8m)
