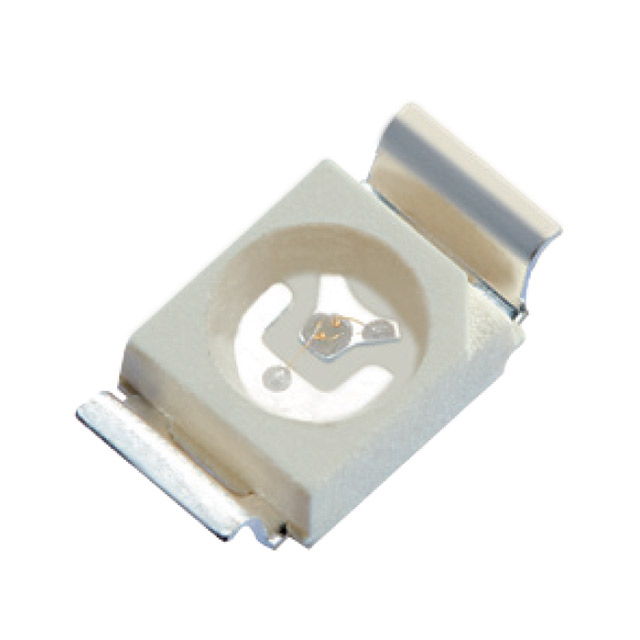

XZMYK45S-9
SunLED
LED YL CLR 2PLCC SMD BOTTOM ENT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZMYK45S-9
SunLED
LED YL CLR 2PLCC SMD BOTTOM ENT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZMYK45S-9 |
|---|---|
| Color | Yellow |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] | 1.9 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 2.4 mm |
| Lens Transparency | Clear |
| Millicandela Rating | 198 mcd |
| Mounting Type | Surface Mount, Bottom Entry |
| Package / Case | 2-SMD, Z-Bend |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 2.8 mm |
| Supplier Device Package | 2-PLCC |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Dominant | 590 nm |
| Wavelength - Peak | 590 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.56 | |
| Digi-Reel® | 1 | $ 0.56 | ||
| Tape & Reel (TR) | 2000 | $ 0.14 | ||
| 6000 | $ 0.13 | |||
| 10000 | $ 0.12 | |||
| 50000 | $ 0.11 | |||
Description
General part information
XZMYK45S-9
Yellow 590nm LED Indication - Discrete 2V 2-SMD, Z-Bend
