MS3108E20-19S
ActiveAmphenol Industrial Operations
MIL-5015 MS/AC THREADED PLUG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3108E20-19S
ActiveAmphenol Industrial Operations
MIL-5015 MS/AC THREADED PLUG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3108E20-19S | MS3108E20 Series |
|---|---|---|
| - | - | |
| Applications | Military, Marine | Military, Marine |
| Cable Opening [custom] | 0.656 in | 0.656 in |
| Cable Opening [custom] | 16.66 mm | 16.66 mm |
| Color | Olive Drab | Olive Drab |
| Connector Type | Female Sockets, Plug | Plug, Male Pins, Female Sockets |
| Contact Finish - Mating | Silver | Silver |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 46 A | 13 - 46 A |
| Features | Coupling Nut, Cable Clamp | Coupling Nut, Cable Clamp, Strain Relief |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle |
| Number of Positions | - | 2 - 14 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-5015 | MIL-5015, MIL-DTL-5015 |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum Alloy | Aluminum Alloy |
| Shell Size - Insert | - | 20-4 |
| Shell Size - Insert [Max] | 19 | 15 - 29 |
| Shell Size - Insert [Min] | 20 | 20 |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | - | 900 - 1250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 67.99 | |
| 10 | $ 62.39 | |||
| 25 | $ 59.99 | |||
| 50 | $ 57.99 | |||
| 100 | $ 54.79 | |||
MS3108E20 Series
PLUG
| Part | Qualification | Ingress Protection | Shell Finish | Operating Temperature [Min] | Operating Temperature [Max] | Features | Shell Material | Color | Contact Finish - Mating | Connector Type | Primary Material | Insert Material | Shielding | Contact Material | Mounting Type | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Applications | Orientation | Current Rating (Amps) | Cable Opening [custom] | Cable Opening [custom] | Grade | Number of Positions | Shell Size - Insert | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3108E20-9S | ||||||||||||||||||||||||||
Amphenol Industrial Operations MS3108E20-19P | MIL-5015 | Environment Resistant | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Cable Clamp, Coupling Nut | Aluminum Alloy | Olive Drab | Silver | Male Pins, Plug | Metal | Neoprene | Unshielded | Copper Alloy | Free Hanging (In-Line), Right Angle | 19 | 20 | Marine, Military | N | |||||||
Amphenol Industrial Operations MS3108E20-19S | MIL-DTL-5015 | Environment Resistant | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Cable Clamp, Coupling Nut | Aluminum Alloy | Olive Drab | Silver | Female Sockets, Plug | Metal | Neoprene | Unshielded | Copper Alloy | Free Hanging (In-Line), Right Angle | 19 | 20 | Marine, Military | N | 46 A | 0.656 in | 16.66 mm | Military | |||
Amphenol Industrial Operations MS3108E20-7S | ||||||||||||||||||||||||||
Amphenol Industrial Operations MS3108E20-25S | ||||||||||||||||||||||||||
Amphenol Industrial Operations MS3108E20-24S | MIL-DTL-5015 | Environment Resistant | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Strain Relief | Aluminum Alloy | Olive Drab | Silver | Female Sockets, Plug | Metal | Neoprene | Unshielded | Copper Alloy | Free Hanging (In-Line), Right Angle | 24 | 20 | Marine, Military | N | 13 A, 46 A | 0.656 in | 16.66 mm | Military | 4 | ||
Amphenol Industrial Operations MS3108E20-4S | MIL-DTL-5015 | Environment Resistant | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Cable Clamp, Coupling Nut | Aluminum Alloy | Olive Drab | Silver | Female Sockets, Plug | Metal | Neoprene | Unshielded | Copper Alloy | Free Hanging (In-Line), Right Angle | Marine, Military | N | 23 A | 0.656 in | 16.66 mm | Military | 4 | 20-4 | 900 VAC, 1250 VDC | ||
Amphenol Industrial Operations MS3108E20-27P | MIL-DTL-5015 | Environment Resistant | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Cable Clamp, Coupling Nut | Aluminum Alloy | Olive Drab | Silver | Male Pins, Plug | Metal | Neoprene | Unshielded | Copper Alloy | Free Hanging (In-Line), Right Angle | 27 | 20 | Marine, Military | N | 13 A | 0.656 in | 16.66 mm | Military | 14 | ||
Amphenol Industrial Operations MS3108E20-9P | ||||||||||||||||||||||||||
Amphenol Industrial Operations MS3108E20-29S | MIL-5015 | Environment Resistant | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Cable Clamp, Coupling Nut | Aluminum Alloy | Olive Drab | Silver | Female Sockets, Plug | Metal | Neoprene | Unshielded | Copper Alloy | Free Hanging (In-Line), Right Angle | 29 | 20 | Marine, Military | N |
Description
General part information
MS3108E20 Series

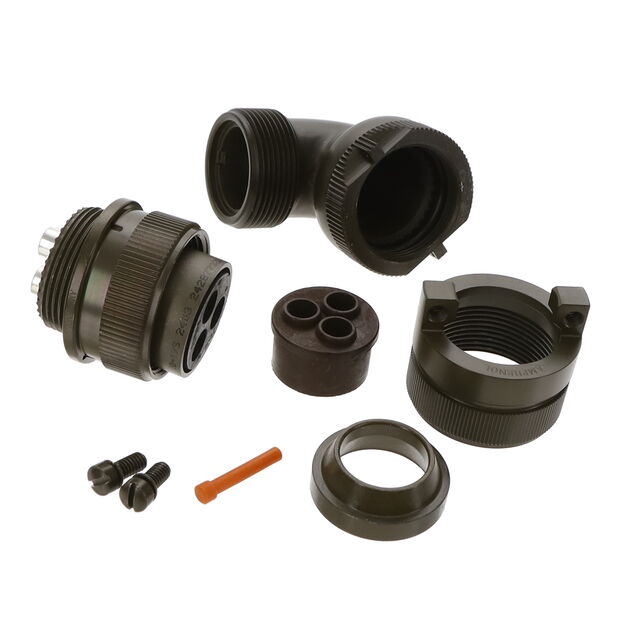

3 Position Circular Connector Plug, Female Sockets Solder Cup
