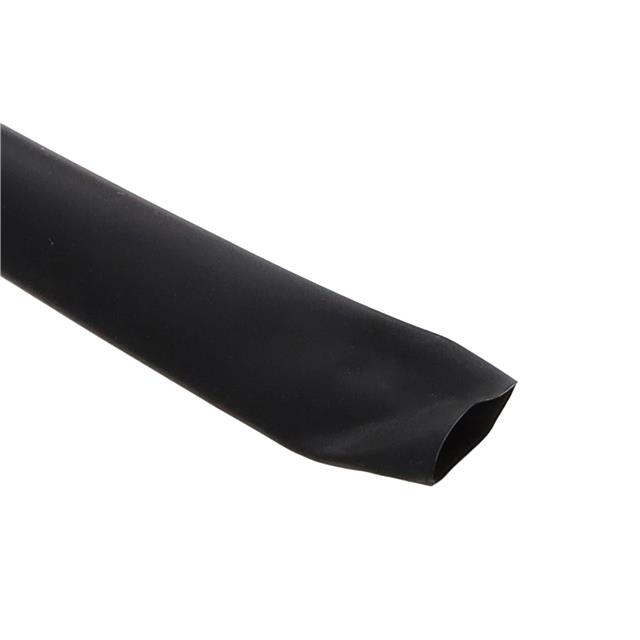

R10 5/8 BLACK SPL

Active

Sumitomo Electric Interconnect Products, Inc.

HEATSHRINK 5/8" BLACK FOOT

Search across all available documentation for this part.

Active

Sumitomo Electric Interconnect Products, Inc.

HEATSHRINK 5/8" BLACK FOOT

Technical Specifications

Parameters and characteristics for this part

Specification	R10 5/8 BLACK SPL

Color	Black
Features	Chemical Resistant, Flame Retardant, Abrasion Resistant
Inner Diameter - Recovered [diameter]	0.357 in
Inner Diameter - Recovered [diameter]	9.07 mm
Inner Diameter - Supplied [diameter]	0.625 in
Inner Diameter - Supplied [diameter]	15.88 mm
Length	Enter Number of Feet in Order Quantity
Material	Polyolefin (PO), Chlorinated
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-103 °F
Recovered Wall Thickness	0.051 in
Recovered Wall Thickness	1.3 mm
Shelf Life	60 Months
Shrink Temperature	150 °C
Shrinkage Ratio	2 to 1
Spool Size	500 '
Spool Size	152.4 m
Type	Tubing, Flexible

HEATSHRINK 5/8" BLACK FOOT

Part	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Type	Shrink Temperature	Shelf Life	Spool Size	Spool Size	Length	Color	Features	Operating Temperature [Max]	Operating Temperature [Min]	Recovered Wall Thickness	Recovered Wall Thickness	Shrinkage Ratio	Material	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]
Sumitomo Electric Interconnect Products, Inc. R10 5/8 BLACK SPL	0.625 in	15.88 mm	Tubing, Flexible	150 °C	60 Months	500 '	152.4 m	Enter Number of Feet in Order Quantity	Black	Abrasion Resistant, Chemical Resistant, Flame Retardant	120 °C	-103 °F	0.051 in	1.3 mm	2 to 1	Polyolefin (PO), Chlorinated	0.357 in	9.07 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Shrink Tubing, Flexible 0.625" (15.88mm) 2 to 1 Black Enter Number of Feet in Order Quantity
