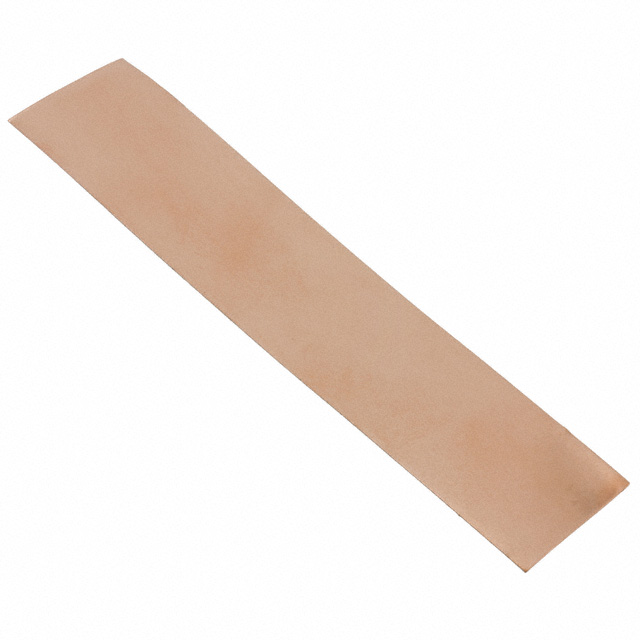

3M 1181 1" X 4"-100

Active

3M (TC)

RF EMI SHLDING SHEET 4"X1" 100PK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 1181 Series REACH Declaration

3M 1181 1" X 4"-100

Active

3M (TC)

RF EMI SHLDING SHEET 4"X1" 100PK

Deep-Dive with AI

DocumentsDatasheet 1181 Series REACH Declaration

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3M 1181 1" X 4"-100

Adhesive	Conductive, Single Sided
Length	4 in
Length	101.6 mm
Material	Copper Foil
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-40 °C
Shape	Rectangular
Shelf Life	60 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	10 °C
Thickness - Overall	0.09 mm
Thickness - Overall	0.004 in
Type	Shielding Sheet
Width	25.4 mm
Width [x]	1 in

1181 Series

Part	Length	Length	Length	Shelf Life	Tape Type	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Width	Width	Usage	Adhesive	Backing, Carrier	Color	Shelf Life Start	Width [x]	Thickness - Overall	Thickness - Overall	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Material	Type	Shape	Width [x]	Width [y]	Width [y]
3M (TC) 1181 25MMX16,5MMC9	54 ft	16.5 m	18 yd	60 Months	Copper Foil	0.0014 in	1.4 mils	0.035 mm	0.98 "	25 mm	EMI Shielding	Conductive Acrylic	Copper Foil	Natural	Date of Manufacture
3M (TC) 1181 X 1.5"	54 ft	16.5 m		60 Months						38.1 mm		Conductive Single Sided			Date of Manufacture	1.5 in	0.003 "	0.07 mm	27 °C 80 °F	10 °C	-40 °C	130 °C	Copper Foil
3M (TC) 1181SQ-0.5(250)	0.5 in	12.7 mm		60 Months								Conductive Single Sided			Date of Manufacture		0.004 in	0.09 mm	27 °C 80 °F	10 °C	-40 °C	130 °C	Copper Foil	Shielding Sheet	Square
3M (TC) 1181-0.5-4(100)	4 in	101.6 mm		60 Months								Conductive Single Sided			Date of Manufacture		0.004 in	0.09 mm	27 °C 80 °F	10 °C	-40 °C	130 °C	Copper Foil	Shielding Sheet	Rectangular
3M (TC) 1181 23"X18YD	54 ft	16.5 m	18 yd	60 Months	Copper Foil	0.0014 in	1.4 mils	0.035 mm			EMI Shielding	Conductive Acrylic	Copper Foil	Natural	Date of Manufacture	23 in										584.2 mm
3M (TC) 3M 1181 0.68" X 0.25"-2500BC
3M (TC) 1181 2" X 18 YDS	54 ft	16.5 m		60 Months								Acrylic Conductive			Date of Manufacture	2 in	0.003 "	0.07 mm	27 °C 80 °F	10 °C	-40 °C	130 °C	Copper Foil	Shielding Tape		50.8 mm
3M (TC) 11816-00000-20																								Safety Glasses
3M (TC) 1181 6"X60YD	180 ft	55 m	60 yds	60 Months	Copper Foil	0.0014 in	1.4 mils	0.035 mm				Conductive Acrylic	Copper Foil	Natural	Date of Manufacture	6 in										152.4 mm
3M (TC) 1181-3/8"X18YD	54 ft	16.5 m		60 Months								Conductive Single Sided			Date of Manufacture		0.003 "	0.07 mm	27 °C 80 °F	10 °C	-40 °C	130 °C	Copper Foil	Shielding Tape			0.38 in	9.65 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2	$ 105.39
		100	$ 90.43

Description

General part information

1181 Series

RF EMI Shielding Sheet 1181 Copper Foil Conductive, Single Sided 1.000" (25.40mm) X 4.000" (101.60mm) X 0.004" (0.09mm)
