TMCS-20-8K-KIT
ActiveAnalog Devices Inc./Maxim Integrated

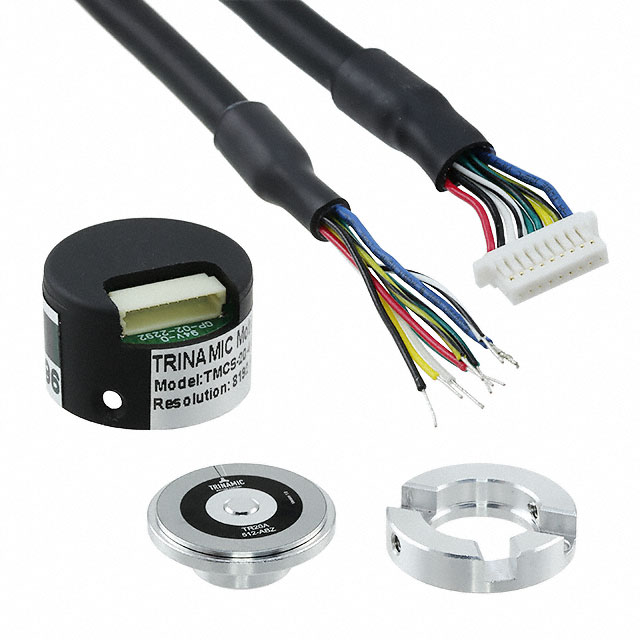

ROTARY ENCODER OPTICAL 8192PPR
Deep-Dive with AI
Search across all available documentation for this part.
TMCS-20-8K-KIT
ActiveAnalog Devices Inc./Maxim Integrated
ROTARY ENCODER OPTICAL 8192PPR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TMCS-20-8K-KIT |
|---|---|
| Actuator Type | Shaft |
| Built in Switch | False |
| Detent | False |
| Encoder Type | Optical |
| Mounting Type | Chassis Mount |
| Orientation | Vertical |
| Output Type | TTL |
| Pulses per Revolution | 8192 |
| Termination Style | Pin Header |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 115.42 | |
| 5 | $ 99.11 | |||
| 10 | $ 92.78 | |||
| 25 | $ 84.98 | |||
| 50 | $ 79.48 | |||
| 100 | $ 75.58 | |||
TMCS-20 Series
ROTARY ENCODER OPTICAL 8192PPR
| Part | Detent | Termination Style | Actuator Type | Orientation | Output Type | Pulses per Revolution | Built in Switch | Mounting Type | Encoder Type | Voltage - Supply [Min] | Voltage - Supply [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated TMCS-20-8K-KIT | Pin Header | Shaft | Vertical | TTL | 8192 | Chassis Mount | Optical | 4.5 V | 5.5 V |
Description
General part information
TMCS-20 Series
Rotary Encoder Optical 8192 TTL Vertical
Documents
Technical documentation and resources
No documents available
