A6E-0104-N

Active

Omron Electronics Inc-EMC Div

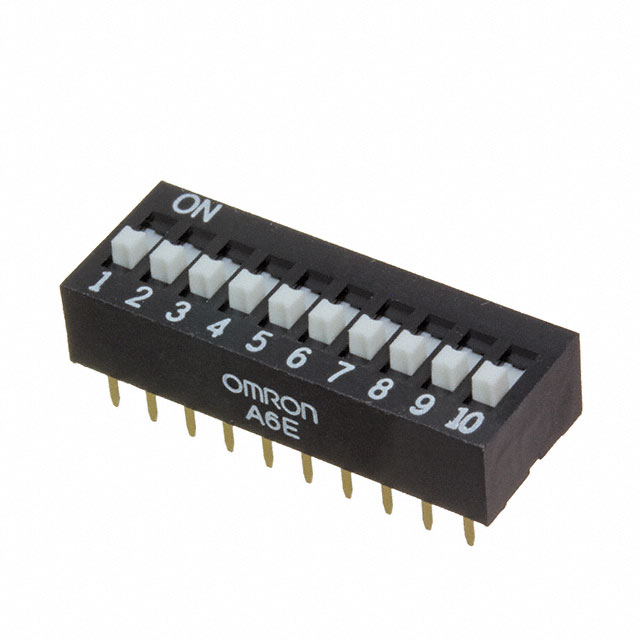

SWITCH SLIDE DIP SPST 0.025A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes

A6E-0104-N

Active

Omron Electronics Inc-EMC Div

SWITCH SLIDE DIP SPST 0.025A 24V

Deep-Dive with AI

DocumentsHow to Read Date Codes

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 6.74
		17	$ 6.15
		34	$ 5.60
		102	$ 4.83
		255	$ 4.40
		510	$ 4.07
		1003	$ 3.78
		2516	$ 3.63

Description

General part information

A6E Series

Dip Switch SPST 10 Position Through Hole Slide (Standard) Actuator 25mA 24VDC

Documents

Technical documentation and resources

How to Read Date Codes

Related Document

Specification	A6E-0104-N	A6E Series

Actuator Level	Raised	Flush, Recessed, Raised
Actuator Type	Slide (Standard)	Slide (Standard)
Circuit	SPST	SPST
Contact Finish	Gold	Gold
Current Rating (Amps)	25 mA	25 mA
Electrical Life	1000 Cycles	1000 Cycles
Height Above Board	7.05 mm	5.85 - 7.05 mm
Height Above Board	0.277 in	0.23 - 0.277 in
Length	-	0.254 - 0.554 "
Length	-	6.44 - 14.06 mm
Length [x]	26.76 mm	16.61 - 26.76 mm
Length [x]	1.054 in	0.654 - 1.054 in
Mechanical Life	1000 Cycles	1000 Cycles
Mounting Type	Through Hole	Through Hole
Number of Positions	10	2 - 10
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 C	-20 C
Pitch	Full	Full
Pitch [x]	0.1 in	0.1 in
Pitch [x]	2.54 mm	2.54 mm
Termination Style	PC Pin	PC Pin
Voltage Rating	24 VDC	24 VDC
Washable	False	False

Part

Voltage Rating

Circuit

Electrical Life

Operating Temperature [Min]

Operating Temperature [Max]

Current Rating (Amps)

Number of Positions

Termination Style

Mounting Type

Actuator Type

Height Above Board

Pitch [x]

Pitch

Pitch [x]

Contact Finish

Washable

Mechanical Life

Actuator Level

Length [x]

Length

Omron Electronics Inc-EMC Div

A6E-0101-N

24 VDC

SPST

1000 Cycles

-20 C

70 °C

25 mA

PC Pin

Through Hole

Slide (Standard)

0.23 in

5.85 mm

0.1 in

Full

2.54 mm

Gold

1000 Cycles

Flush, Recessed

26.76 mm

1.054 in

Omron Electronics Inc-EMC Div

A6E-6101-N

24 VDC

SPST

1000 Cycles

-20 C

70 °C

25 mA

PC Pin

Through Hole

Slide (Standard)

0.23 in

5.85 mm

0.1 in

Full

2.54 mm

Gold

1000 Cycles

Flush, Recessed

16.61 mm

0.654 in

Omron Electronics Inc-EMC Div

A6E-7101-N

24 VDC

SPST

1000 Cycles

-20 C

70 °C

25 mA

PC Pin

Through Hole

Slide (Standard)

0.23 in

5.85 mm

0.1 in

Full

2.54 mm

Gold

1000 Cycles

Flush, Recessed

Omron Electronics Inc-EMC Div

A6E-0104-N

24 VDC

SPST

1000 Cycles

-20 C

70 °C

25 mA

PC Pin

Through Hole

Slide (Standard)

0.277 in

7.05 mm

0.1 in

Full

2.54 mm

Gold

1000 Cycles

Raised

26.76 mm

1.054 in

Omron Electronics Inc-EMC Div

A6E-8101-N

24 VDC

SPST

1000 Cycles

-20 C

70 °C

25 mA

PC Pin

Through Hole

Slide (Standard)

0.23 in

5.85 mm

0.1 in

Full

2.54 mm

Gold

1000 Cycles

Flush, Recessed

Omron Electronics Inc-EMC Div

A6E-6104-N

24 VDC

SPST

1000 Cycles

-20 C

70 °C

25 mA

PC Pin

Through Hole

Slide (Standard)

0.277 in

7.05 mm

0.1 in

Full

2.54 mm

Gold

1000 Cycles

Raised

16.61 mm

0.654 in

Omron Electronics Inc-EMC Div

A6E-5104-N

24 VDC

SPST

1000 Cycles

-20 C

70 °C

25 mA

PC Pin

Through Hole

Slide (Standard)

0.277 in

7.05 mm

0.1 in

Full

2.54 mm

Gold

1000 Cycles

Raised

0.554 "

14.06 mm

Omron Electronics Inc-EMC Div

A6E-2104-N

24 VDC

SPST

1000 Cycles

-20 C

70 °C

25 mA

PC Pin

Through Hole

Slide (Standard)

0.277 in

7.05 mm

0.1 in

Full

2.54 mm

Gold

1000 Cycles

Raised

0.254 in

6.44 mm

Omron Electronics Inc-EMC Div

A6E-3104-N

24 VDC

SPST

1000 Cycles

-20 C

70 °C

25 mA

PC Pin

Through Hole

Slide (Standard)

0.277 in

7.05 mm

0.1 in

Full

2.54 mm

Gold

1000 Cycles

Raised

0.354 in

8.99 mm

Omron Electronics Inc-EMC Div

A6E-9104-N

24 VDC

SPST

1000 Cycles

-20 C

70 °C

25 mA

PC Pin

Through Hole

Slide (Standard)

0.277 in

7.05 mm

0.1 in

Full

2.54 mm

Gold

1000 Cycles

Raised

24.23 mm

0.954 "

Part	Voltage Rating	Circuit	Electrical Life	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Number of Positions	Termination Style	Mounting Type	Actuator Type	Height Above Board	Height Above Board	Pitch [x]	Pitch	Pitch [x]	Contact Finish	Mechanical Life	Actuator Level	Length [x]	Length [x]	Length	Length
Omron Electronics Inc-EMC Div A6E-0101-N	24 VDC	SPST	1000 Cycles	-20 C	70 °C	25 mA	10	PC Pin	Through Hole	Slide (Standard)	0.23 in	5.85 mm	0.1 in	Full	2.54 mm	Gold	1000 Cycles	Flush, Recessed	26.76 mm	1.054 in
Omron Electronics Inc-EMC Div A6E-6101-N	24 VDC	SPST	1000 Cycles	-20 C	70 °C	25 mA	6	PC Pin	Through Hole	Slide (Standard)	0.23 in	5.85 mm	0.1 in	Full	2.54 mm	Gold	1000 Cycles	Flush, Recessed	16.61 mm	0.654 in
Omron Electronics Inc-EMC Div A6E-7101-N	24 VDC	SPST	1000 Cycles	-20 C	70 °C	25 mA	7	PC Pin	Through Hole	Slide (Standard)	0.23 in	5.85 mm	0.1 in	Full	2.54 mm	Gold	1000 Cycles	Flush, Recessed
Omron Electronics Inc-EMC Div A6E-0104-N	24 VDC	SPST	1000 Cycles	-20 C	70 °C	25 mA	10	PC Pin	Through Hole	Slide (Standard)	0.277 in	7.05 mm	0.1 in	Full	2.54 mm	Gold	1000 Cycles	Raised	26.76 mm	1.054 in
Omron Electronics Inc-EMC Div A6E-8101-N	24 VDC	SPST	1000 Cycles	-20 C	70 °C	25 mA	8	PC Pin	Through Hole	Slide (Standard)	0.23 in	5.85 mm	0.1 in	Full	2.54 mm	Gold	1000 Cycles	Flush, Recessed
Omron Electronics Inc-EMC Div A6E-6104-N	24 VDC	SPST	1000 Cycles	-20 C	70 °C	25 mA	6	PC Pin	Through Hole	Slide (Standard)	0.277 in	7.05 mm	0.1 in	Full	2.54 mm	Gold	1000 Cycles	Raised	16.61 mm	0.654 in
Omron Electronics Inc-EMC Div A6E-5104-N	24 VDC	SPST	1000 Cycles	-20 C	70 °C	25 mA		PC Pin	Through Hole	Slide (Standard)	0.277 in	7.05 mm	0.1 in	Full	2.54 mm	Gold	1000 Cycles	Raised			0.554 "	14.06 mm
Omron Electronics Inc-EMC Div A6E-2104-N	24 VDC	SPST	1000 Cycles	-20 C	70 °C	25 mA	2	PC Pin	Through Hole	Slide (Standard)	0.277 in	7.05 mm	0.1 in	Full	2.54 mm	Gold	1000 Cycles	Raised			0.254 in	6.44 mm
Omron Electronics Inc-EMC Div A6E-3104-N	24 VDC	SPST	1000 Cycles	-20 C	70 °C	25 mA		PC Pin	Through Hole	Slide (Standard)	0.277 in	7.05 mm	0.1 in	Full	2.54 mm	Gold	1000 Cycles	Raised			0.354 in	8.99 mm
Omron Electronics Inc-EMC Div A6E-9104-N	24 VDC	SPST	1000 Cycles	-20 C	70 °C	25 mA	9	PC Pin	Through Hole	Slide (Standard)	0.277 in	7.05 mm	0.1 in	Full	2.54 mm	Gold	1000 Cycles	Raised	24.23 mm	0.954 "
