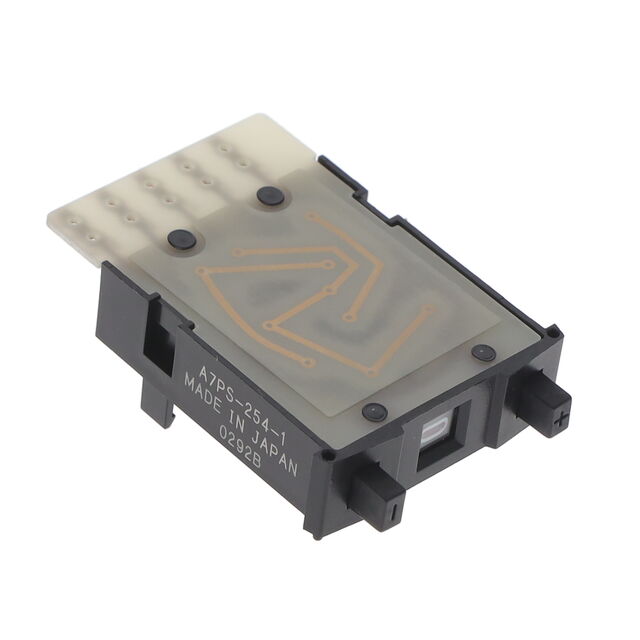

A7PS-254-1
ActiveOmron Electronics Inc-EMC Div
SWITCH THUMB HEX 0.1A 50V
Deep-Dive with AI
Search across all available documentation for this part.
A7PS-254-1
ActiveOmron Electronics Inc-EMC Div
SWITCH THUMB HEX 0.1A 50V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A7PS-254-1 | A7P Series |
|---|---|---|
| Accessory Type | - | Spacer |
| Actuator Type | Pushwheel | Pushwheel |
| Color | Black | Black, Light Gray |
| Contact Rating @ Voltage | - | 0.15 A |
| Contact Rating @ Voltage [x] | 28 VDC, 50 VAC, 0.1 A | 0.1 - 50 VDC |
| Depth Behind Flange | 43 mm | 43 - 55 mm |
| Display Characters - Height [z] | 0.157 in | 0.157 - 0.268 in |
| Display Characters - Height [z] | 4 mm | 4 - 6.8 mm |
| Electrical Life | 50000 Cycles | 50000 - 1000000 Cycles |
| End Caps | Sold Separately | Sold Separately |
| Features | - | Internal Stoppers, Diode |
| For Use With/Related Products | - | A7PS Series, A7PH |
| Mounting Type | Panel Mount, Snap-In | Panel Mount, Snap-In |
| Number of Sections | 1 | 1 |
| Operating Temperature [Max] | 65 °C | 65 °C |
| Operating Temperature [Min] | -10 °C | -10 °C |
| Output Code | Hexadecimal | BCD, SPDT, Decimal, Hexadecimal |
| Read Out | - | 0 |
| Read Out | - | 9 |
| Read Out | - | +/- |
| Read Out [Max] | F, 9 | F, 9 |
| Read Out [Min] | 0, A | 0, A |
| Section Width [x] | 0.394 in | 0.394 in |
| Section Width [x] | 10 mm | 10 mm |
| Termination Style | Solder Pad, Card Edge | Solder Pad, Card Edge, Card Edge/Solder Pad with Component Mounting |
