1115B X 1"

Active

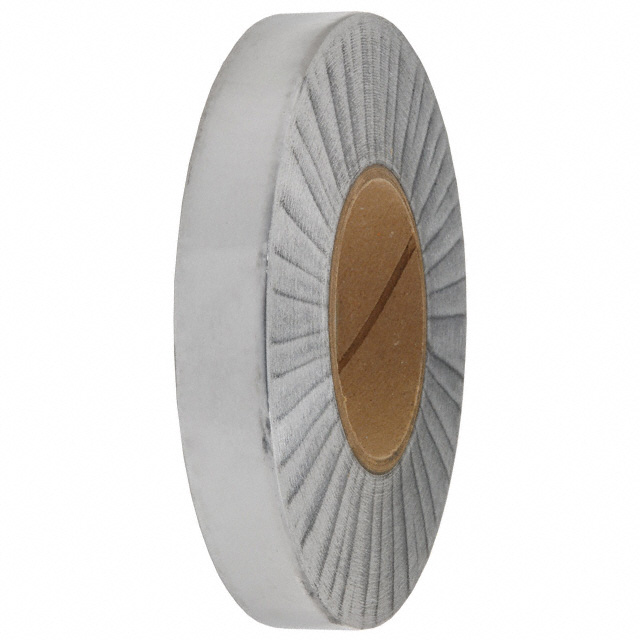

RF EMI SHIELDING SHEET 36" X 1"

Search across all available documentation for this part.

Active

RF EMI SHIELDING SHEET 36" X 1"

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1115B X 1"	1115 Series

Adhesive	Conductive, Single Sided	Conductive, Single Sided
Length	91.44 cm	91.44 cm
Length [x]	180 ft, 36 "	36 - 180 ft
Length [x]	55 m	55 m
Material	Aluminum Foil	Aluminum Foil
Operating Temperature [Max]	130 °C	130 °C
Operating Temperature [Min]	-40 °C	-40 °C
Thickness - Overall	0.18 mm	0.006 - 0.18 mm
Thickness - Overall	0.007 in	0.007 in
Thickness - Overall	-	0.15 mm
Type	Shielding Tape, Shielding Sheet	Shielding Tape, Shielding Sheet
Width	25.4 mm	25.4 mm
Width	-	152.4 mm
Width	-	6 in
Width [x]	1 in	1 in

RF EMI SHIELDING SHEET 36" X 1"

Part	Type	Material	Thickness - Overall	Thickness - Overall	Operating Temperature [Min]	Operating Temperature [Max]	Width	Width [x]	Length [x]	Length [x]	Adhesive	Length	Width [y]	Width [y]	Thickness - Overall
3M 1115B X 1"	Shielding Sheet, Shielding Tape	Aluminum Foil	0.18 mm	0.007 in	-40 °C	130 °C	25.4 mm	1 in	36 ", 180 ft	55 m	Conductive, Single Sided	91.44 cm
3M 1115B 6"X60YDS	Shielding Tape	Aluminum Foil	0.006 in		-40 °C	130 °C			180 ft	55 m	Conductive, Single Sided		152.4 mm	6 in	0.15 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF EMI Shielding Sheet 1115 Aluminum Foil Conductive, Single Sided 1.000" (25.40mm) X 36.000" (914.40mm) X 0.007" (0.18mm)
