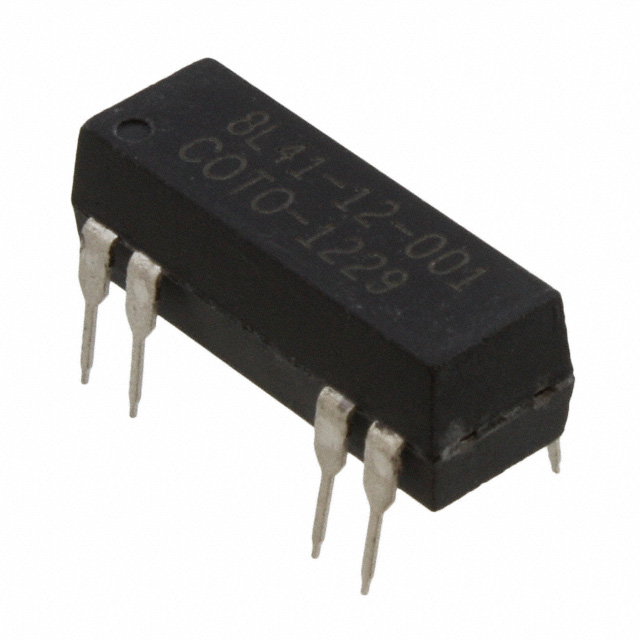

8L41-12-001

Active

Coto Technology

RELAY REED SPDT 250MA 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8L41-12-001

Active

Coto Technology

RELAY REED SPDT 250MA 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8L41-12-001

Coil Current	24 mA
Coil Resistance	500 Ohms
Coil Type	Non Latching
Coil Voltage	12 VDC
Contact Form	SPDT (1 Form C)
Contact Rating (Current)	250 mA
Mounting Type	Through Hole
Must Operate Voltage	9.6 VDC
Must Release Voltage	1 VDC
Operate Time	1 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Release Time	1 ms
Switching Voltage	100 VAC, 100 VDC
Termination Style	PC Pin

8L41 Series

Part	Release Time	Contact Form	Coil Resistance	Coil Current	Termination Style	Must Release Voltage	Contact Rating (Current)	Coil Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Coil Type	Switching Voltage	Operate Time	Must Operate Voltage	Features
Coto Technology 8L41-24-111	1 ms	SPDT (1 Form C)	2 kOhms	12 mA	PC Pin	2 VDC	250 mA	24 VDC	85 °C	-20 C	Through Hole	Non Latching	100 VAC 100 VDC	1 ms	19.2 VDC	Diode Electrostatic Shield
Coto Technology 8L41-12-111	1 ms	SPDT (1 Form C)	500 Ohms	24 mA	PC Pin	1 VDC	250 mA	12 VDC	85 °C	-20 C	Through Hole	Non Latching	100 VAC 100 VDC	1 ms	9.6 VDC	Diode Electrostatic Shield
Coto Technology 8L41-05-001	1 ms	SPDT (1 Form C)	200 Ohms		PC Pin	0.5 VDC	250 mA	5 VDC	85 °C	-20 C	Through Hole	Non Latching	100 VAC 100 VDC	1 ms	3.8 VDC
Coto Technology 8L41-24-011	1 ms	SPDT (1 Form C)	2 kOhms	12 mA	PC Pin	2 VDC	250 mA	24 VDC	85 °C	-20 C	Through Hole	Non Latching	100 VAC 100 VDC	1 ms	19.2 VDC	Diode
Coto Technology 8L41-05-011	1 ms	SPDT (1 Form C)	200 Ohms		PC Pin	0.5 VDC	250 mA	5 VDC	85 °C	-20 C	Through Hole	Non Latching	100 VAC 100 VDC	1 ms	3.8 VDC	Diode
Coto Technology 8L41-24-001	1 ms	SPDT (1 Form C)	2 kOhms	12 mA	PC Pin	2 VDC	250 mA	24 VDC	85 °C	-20 C	Through Hole	Non Latching	100 VAC 100 VDC	1 ms	19.2 VDC
Coto Technology 8L41-12-101	1 ms	SPDT (1 Form C)	500 Ohms	24 mA	PC Pin	1 VDC	250 mA	12 VDC	85 °C	-20 C	Through Hole	Non Latching	100 VAC 100 VDC	1 ms	9.6 VDC	Electrostatic Shield
Coto Technology 8L41-24-101	1 ms	SPDT (1 Form C)	2 kOhms	12 mA	PC Pin	2 VDC	250 mA	24 VDC	85 °C	-20 C	Through Hole	Non Latching	100 VAC 100 VDC	1 ms	19.2 VDC	Electrostatic Shield
Coto Technology 8L41-12-011	1 ms	SPDT (1 Form C)	500 Ohms	24 mA	PC Pin	1 VDC	250 mA	12 VDC	85 °C	-20 C	Through Hole	Non Latching	100 VAC 100 VDC	1 ms	9.6 VDC	Diode
Coto Technology 8L41-05-111	1 ms	SPDT (1 Form C)	200 Ohms		PC Pin	0.5 VDC	250 mA	5 VDC	85 °C	-20 C	Through Hole	Non Latching	100 VAC 100 VDC	1 ms	3.8 VDC	Diode Electrostatic Shield

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 8.15
		10	$ 7.24
		25	$ 6.88
		50	$ 6.52
		100	$ 6.38

Description

General part information

8L41 Series

RELAY REED SPDT 250MA 12V
