CAEN2C3F07990
ActiveSwitchcraft Inc.

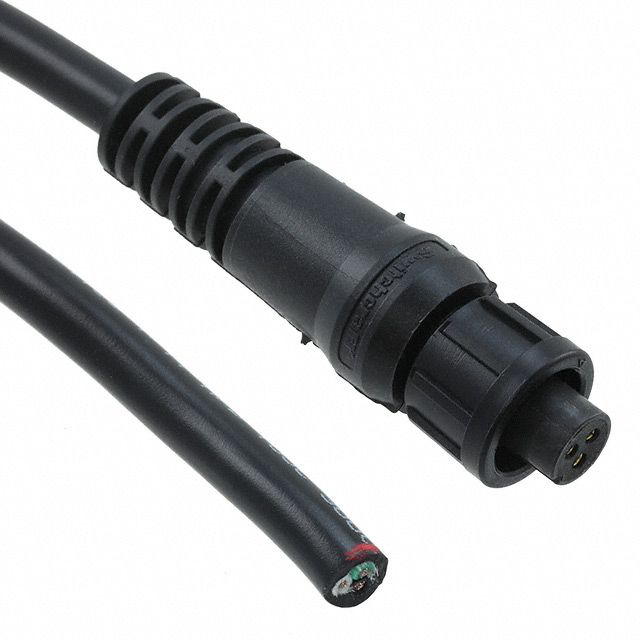

CBL CIRC 3POS FEM TO WIRE 6.56'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CAEN2C3F07990
ActiveSwitchcraft Inc.
CBL CIRC 3POS FEM TO WIRE 6.56'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CAEN2C3F07990 | CAEN2C Series |
|---|---|---|
| 1st Connector Gender | Female Sockets | Female Sockets, Male Pins |
| 1st Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 3 | 2 - 3 |
| 1st Connector Number of Positions Loaded | All | All |
| 1st Connector Type | Plug | Plug, Receptacle |
| 2nd Connector Type | Wire Leads | Wire Leads |
| Assembly Configuration | Standard | Standard |
| Cable Material | Polyvinyl Chloride (PVC) | Polyvinyl Chloride (PVC) |
| Cable Type | Round | Round |
| Color | Black | Black |
| Ingress Protection | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof |
| Length [x] | 2 m | 2 m |
| Length [x] | 6.56 ft | 6.56 ft |
| Shielding | Unshielded | Unshielded |
| Usage | Industrial Environments | Industrial Environments |
CAEN2C Series
CIRC CBL 3POS PLUG
| Part | 1st Connector Number of Positions | 1st Connector Number of Positions Loaded | 1st Connector Gender | 1st Connector Type | 2nd Connector Type | Usage | Length [x] | Length [x] | Ingress Protection | Assembly Configuration | Shielding | Cable Material | Cable Type | Color | 1st Connector Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. CAEN2C3F040DF | 3 | All | Female Sockets | Plug | |||||||||||
Switchcraft Inc. CAEN2C2F197DF | 2 | All | Female Sockets | Plug | |||||||||||
Switchcraft Inc. CAEN2C3M04084 | 3 | All | Male Pins | Receptacle | |||||||||||
Switchcraft Inc. CAEN2C3F19784 | 3 | All | Female Sockets | Plug | |||||||||||
Switchcraft Inc. CAEN2C3F19790 | 3 | All | Female Sockets | Plug | |||||||||||
Switchcraft Inc. CAEN2C2F079DF | 2 | All | Female Sockets | Plug | |||||||||||
Switchcraft Inc. CAEN2C3F197DM | 3 | All | Female Sockets | Plug | |||||||||||
Switchcraft Inc. CAEN2C2M04084 | 2 | All | Male Pins | Receptacle | |||||||||||
Switchcraft Inc. CAEN2C2F19790 | 2 | All | Female Sockets | Plug | |||||||||||
Switchcraft Inc. CAEN2C2M39484 | 2 | All | Male Pins | Receptacle |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.87 | |
| 10 | $ 15.10 | |||
Description
General part information
CAEN2C Series
Cable Assembly 6.56' (2.00m)
Documents
Technical documentation and resources
