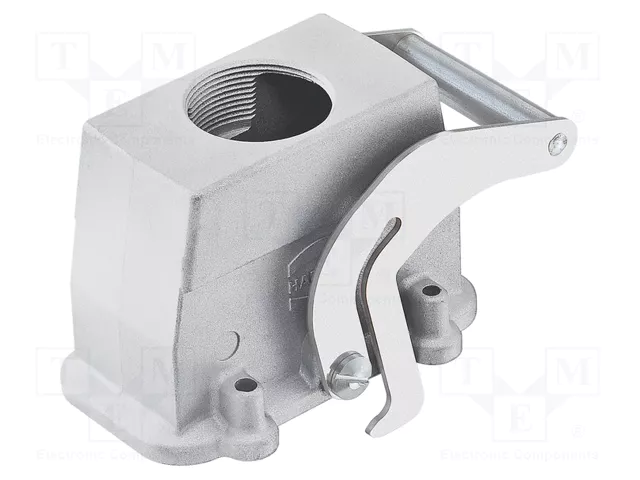

Specification	09620400481

Connector Type	Hood
Housing Material	Die Cast, Aluminum
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP65
Lock Location	Locking Clip (1) on Hood
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Size	16B
Size / Dimension Height	2.953 in
Size / Dimension Length	4.193 in
Size / Dimension Width	2.795 in
Style	Top Entry
Thread Size	PG29

Han EMC Series

Part	Style	Size / Dimension Length	Size / Dimension Height	Size / Dimension Width	Ingress Protection IP Rating	Ingress Protection Description	Connector Type	Lock Location	Thread Size	Housing Material	Size	Features	Operating Temperature (Min)	Operating Temperature (Max)	Housing Finish
HARTING 19628100292	Dual Side Entry	3.701 in	3.181 in	2.244 in	IP65	Dust Tight Water Resistant	Base - Box Mount	Locking Clip (2) on Base Bottom	M32	Aluminum Die Cast	10B	Feed Through	-40 °C	200 °C
HARTING 19628100596	Side Top Entry	2.858 in	2.835 in	1.693 in			Hood	Locking Clip (2) on Base Bottom	M25 M32		10B
HARTING 19628100766	Top Entry Top or Bottom Entry	2.858 in	2.953 in	1.693 in	IP65	Dust Tight Water Resistant	Hood - Coupling	Locking Clip (2) on Hood	M25	Aluminum Die Cast	10B	Cable Cable to Cable	-40 °C	125 °C
HARTING 19628100272	Side Entry	3.701 in	3.226 in	2.244 in	IP65	Dust Tight Water Resistant	Base - Box Mount	Locking Clip (2) on Base Bottom	M32	Aluminum Die Cast	10B	Feed Through	-40 °C	125 °C
HARTING 19628100757	Bottom Entry Top or Bottom Entry	2.858 in	2.921 in	1.693 in	IP65	Dust Tight Water Resistant	Hood - Coupling	Locking Clip (1) on Hood Top	M32	Aluminum Die Cast	10B	Cable Cable to Cable	-40 °C	125 °C
HARTING 19628100427	Top Entry	2.858 in	2.835 in	1.693 in	IP65	Dust Tight Water Resistant	Hood	Locking Clip (2) on Base Bottom	M32	Aluminum Die Cast	10B		-40 °C	125 °C	EMC Coating
