325221-04-0
ActiveCurtis Industries

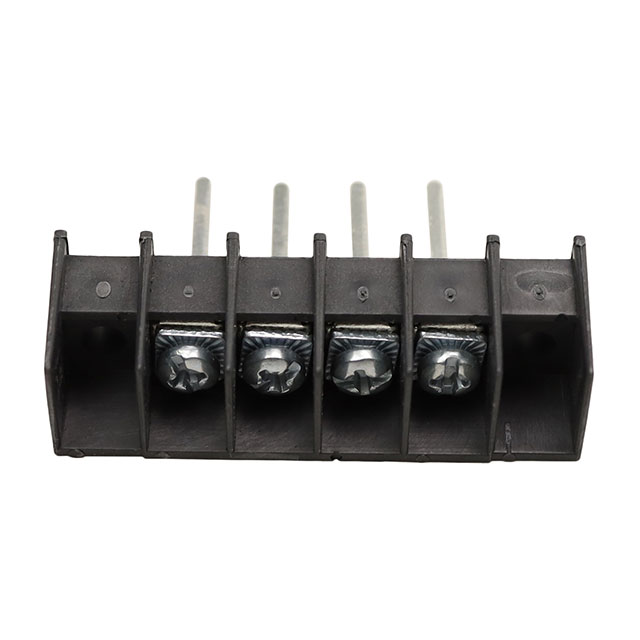

CONN BARRIER STRIP 4CIRC 0.325"
Deep-Dive with AI
Search across all available documentation for this part.
325221-04-0
ActiveCurtis Industries
CONN BARRIER STRIP 4CIRC 0.325"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 325221-04-0 | 325221 Series |
|---|---|---|
| Barrier Type | 3 Wall (Tri) | 3 Wall (Tri) |
| Bottom Termination | Wire Wrap | Wire Wrap |
| Current Rating (Amps) | 15 A | 15 A |
| Features | Flange | Flange |
| Material - Insulation | Polypropylene (PP) | Polypropylene (PP) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Chassis, Panel, Through Hole | Chassis, Panel, Through Hole |
| Number of Circuits | 4 | 1 - 21 |
| Number of Circuits | - | 8 |
| Number of Rows | 1 | 1 |
| Number of Wire Entries | 4 | 3 - 21 |
| Number of Wire Entries | - | 1 |
| Operating Temperature | 105 C | 105 C |
| Pitch [x] | 8.26 mm | 8.26 mm |
| Pitch [x] | 0.325 in | 0.325 in |
| Terminal Block Type | Barrier Block | Barrier Block |
| Top Termination | Screws | Screws |
| Voltage Rating | 300 VDC | 300 VDC |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 14 AWG | 14 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.16 | |
| 10 | $ 1.65 | |||
| 30 | $ 1.54 | |||
| 50 | $ 1.37 | |||
| 100 | $ 1.34 | |||
| 250 | $ 1.31 | |||
325221 Series
CONN BARRIER STRIP 5CIRC 0.325"
| Part | Material - Insulation | Pitch [x] | Pitch [x] | Current Rating (Amps) | Voltage Rating | Material Flammability Rating | Features | Terminal Block Type | Barrier Type | Number of Circuits | Number of Wire Entries | Mounting Type | Operating Temperature | Wire Gauge [Min] | Wire Gauge [Max] | Number of Rows | Top Termination | Bottom Termination | Number of Wire Entries [custom] | Number of Circuits [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries 325221-05-0 | Polypropylene (PP) | 8.26 mm | 0.325 in | 15 A | 300 VDC | UL94 V-0 | Flange | Barrier Block | 3 Wall (Tri) | 5 | 5 | Chassis, Panel, Through Hole | 105 C | 14 AWG | 22 AWG | 1 | Screws | Wire Wrap | ||
Curtis Industries 325221-13-0 | Polypropylene (PP) | 8.26 mm | 0.325 in | 15 A | 300 VDC | UL94 V-0 | Flange | Barrier Block | 3 Wall (Tri) | 13 | 13 | Chassis, Panel, Through Hole | 105 C | 14 AWG | 22 AWG | 1 | Screws | Wire Wrap | ||
Curtis Industries 325221-01-0 | Polypropylene (PP) | 15 A | 300 VDC | UL94 V-0 | Flange | Barrier Block | 3 Wall (Tri) | 1 | Chassis, Panel, Through Hole | 105 C | 14 AWG | 22 AWG | 1 | Screws | Wire Wrap | 1 | ||||
Curtis Industries 325221-11-0 | Polypropylene (PP) | 8.26 mm | 0.325 in | 15 A | 300 VDC | UL94 V-0 | Flange | Barrier Block | 3 Wall (Tri) | 11 | 11 | Chassis, Panel, Through Hole | 105 C | 14 AWG | 22 AWG | 1 | Screws | Wire Wrap | ||
Curtis Industries 325221-21-0 | Polypropylene (PP) | 8.26 mm | 0.325 in | 15 A | 300 VDC | UL94 V-0 | Flange | Barrier Block | 3 Wall (Tri) | 21 | 21 | Chassis, Panel, Through Hole | 105 C | 14 AWG | 22 AWG | 1 | Screws | Wire Wrap | ||
Curtis Industries 325221-12-0 | Polypropylene (PP) | 8.26 mm | 0.325 in | 15 A | 300 VDC | UL94 V-0 | Flange | Barrier Block | 3 Wall (Tri) | 12 | 12 | Chassis, Panel, Through Hole | 105 C | 14 AWG | 22 AWG | 1 | Screws | Wire Wrap | ||
Curtis Industries 325221-20-0 | Polypropylene (PP) | 8.26 mm | 0.325 in | 15 A | 300 VDC | UL94 V-0 | Flange | Barrier Block | 3 Wall (Tri) | 20 | 20 | Chassis, Panel, Through Hole | 105 C | 14 AWG | 22 AWG | 1 | Screws | Wire Wrap | ||
Curtis Industries 325221-06-0 | Polypropylene (PP) | 8.26 mm | 0.325 in | 15 A | 300 VDC | UL94 V-0 | Flange | Barrier Block | 3 Wall (Tri) | 6 | 6 | Chassis, Panel, Through Hole | 105 C | 14 AWG | 22 AWG | 1 | Screws | Wire Wrap | ||
Curtis Industries 325221-03-0 | Polypropylene (PP) | 8.26 mm | 0.325 in | 15 A | 300 VDC | UL94 V-0 | Flange | Barrier Block | 3 Wall (Tri) | 3 | 3 | Chassis, Panel, Through Hole | 105 C | 14 AWG | 22 AWG | 1 | Screws | Wire Wrap | ||
Curtis Industries 325221-04-0 | Polypropylene (PP) | 8.26 mm | 0.325 in | 15 A | 300 VDC | UL94 V-0 | Flange | Barrier Block | 3 Wall (Tri) | 4 | 4 | Chassis, Panel, Through Hole | 105 C | 14 AWG | 22 AWG | 1 | Screws | Wire Wrap |
Description
General part information
325221 Series
4 Circuit 0.325" (8.26mm) Barrier Block Connector Screws
