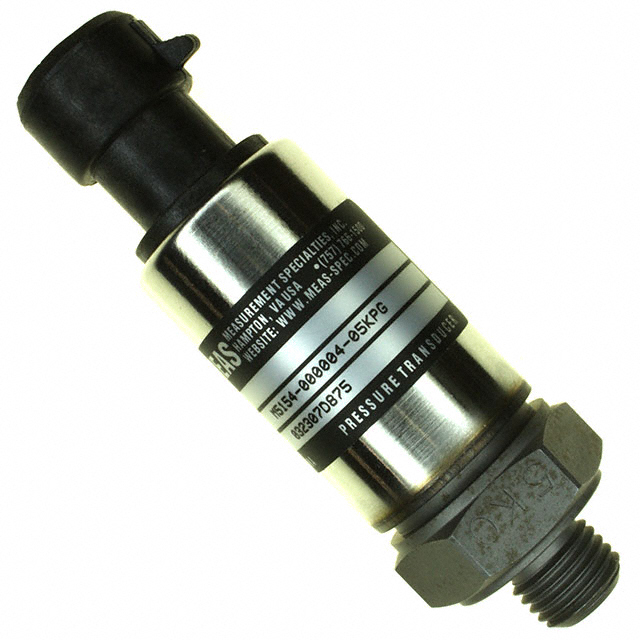

M5154-000004-05KPG
ObsoleteTE Connectivity Measurement Specialties
TRANSDUCER 4-20MA 5000PSI
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M5154-000004-05KPG
ObsoleteTE Connectivity Measurement Specialties
TRANSDUCER 4-20MA 5000PSI
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M5154-000004-05KPG |
|---|---|
| Accuracy | 1 % |
| Applications | Industrial Automation |
| Features | Temperature Compensated |
| Maximum Pressure | 10000 PSI |
| Maximum Pressure | 68947.57 kPa |
| Operating Pressure | 34473.79 kPa |
| Operating Pressure | 5000 PSI |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output [Max] | 20 mA |
| Output [Min] | 4 mA |
| Output Type | Analog Current |
| Package / Case | Cylinder |
| Port Size | Male |
| Port Size | 0.4375 " |
| Port Size | 11.11 mm |
| Port Style | Threaded |
| Pressure Type | Vented Gauge |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
M5154-000004-05KPG
TRANSDUCER 4-20MA 5000PSI
Documents
Technical documentation and resources
