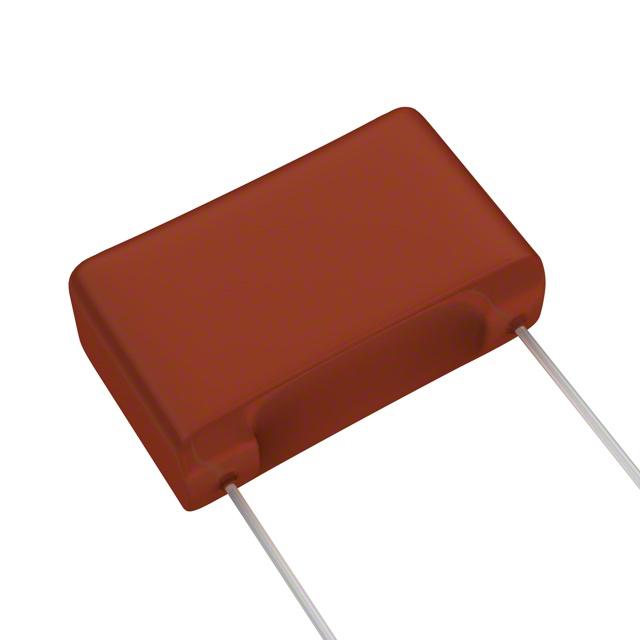

Specification	ECW-FA2J105J

Applications	Switching, High Frequency
Capacitance	1 µF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max)	0.638 in
Lead Spacing	0.886 in
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Package / Case	Radial
Size / Dimension Length	1.024 in
Size / Dimension Width	0.437 in
Termination	PC Pins
Tolerance	5 %
Voltage Rating - AC	141 V
Voltage Rating - DC	630 V

ECW-FA Series

Part	Mounting Type	Package / Case	Lead Spacing	Voltage Rating - DC	Dielectric Material	Size / Dimension Length	Size / Dimension Width	Applications	Capacitance	Height - Seated (Max)	Operating Temperature (Min)	Operating Temperature (Max)	Tolerance	Termination
Panasonic Electronic Components ECW-FA2J154JQ	Through Hole	Radial	0.591 in	630 V	Metallized Polypropylene (PP)	0.717 in	0.236 in	High Frequency Switching	0.15 µF	0.638 in	-40 °C	105 °C	5 %	PC Pins
Panasonic Electronic Components ECW-FA2J225JB	Through Hole	Radial	0.886 in	630 V	Metallized Polypropylene (PP)	1.024 in	0.642 in	High Frequency Switching	2.2 µF	1.039 in	-40 °C	105 °C	5 %	PC Pins
Panasonic Electronic Components ECW-FA2J105JQ	Through Hole	Radial	0.886 in	630 V	Metallized Polypropylene (PP)	1.024 in	0.437 in	High Frequency Switching	1 µF	0.913 in	-40 °C	105 °C	5 %	PC Pins
Panasonic Electronic Components ECW-FA2J394J4	Through Hole	Radial	0.591 in	630 V	Metallized Polypropylene (PP)	0.717 in	0.362 in	High Frequency Switching	0.39 µF	0.563 in	-40 °C	105 °C	5 %	PC Pins
Panasonic Electronic Components ECW-FA2J684J4	Through Hole	Radial	0.295 in	630 V	Metallized Polypropylene (PP)	0.717 in	0.472 in	High Frequency Switching	0.68 µF	0.673 in	-40 °C	105 °C	5 %	PC Pins
Panasonic Electronic Components ECW-FA2J185JQ	Through Hole	Radial	0.886 in	630 V	Metallized Polypropylene (PP)	1.024 in	0.583 in	High Frequency Switching	1.8 µF	1.055 in	-40 °C	105 °C	5 %	PC Pins
Panasonic Electronic Components ECW-FA2J105JB	Through Hole	Radial	0.591 in	630 V	Metallized Polypropylene (PP)	1.024 in	0.437 in	High Frequency Switching	1 µF	0.835 in	-40 °C	105 °C	5 %	PC Pins
Panasonic Electronic Components ECW-FA2J154J5	Through Hole	Radial	0.591 in	630 V	Metallized Polypropylene (PP)	0.717 in	0.236 in	High Frequency Switching	0.15 µF	0.441 in	-40 °C	105 °C	5 %	PC Pins
Panasonic Electronic Components ECW-FA2J334JB	Through Hole	Radial	0.295 in	630 V	Metallized Polypropylene (PP)	0.717 in	0.335 in	High Frequency Switching	0.33 µF	0.732 in	-40 °C	105 °C	5 %	PC Pins
Panasonic Electronic Components ECW-FA2J334J4	Through Hole	Radial	0.591 in	630 V	Metallized Polypropylene (PP)	0.717 in	0.335 in	High Frequency Switching	0.33 µF	0.535 in	-40 °C	105 °C	5 %	PC Pins
