HV-I8UG60G-MP9AA-U1930
ActiveHarvatek Corporation
LED CBI 4.7MM GRN RA
HV-I8UG60G-MP9AA-U1930
ActiveHarvatek Corporation
LED CBI 4.7MM GRN RA
Description
General part information
HV-I8UG60G-MP9AA-U1930

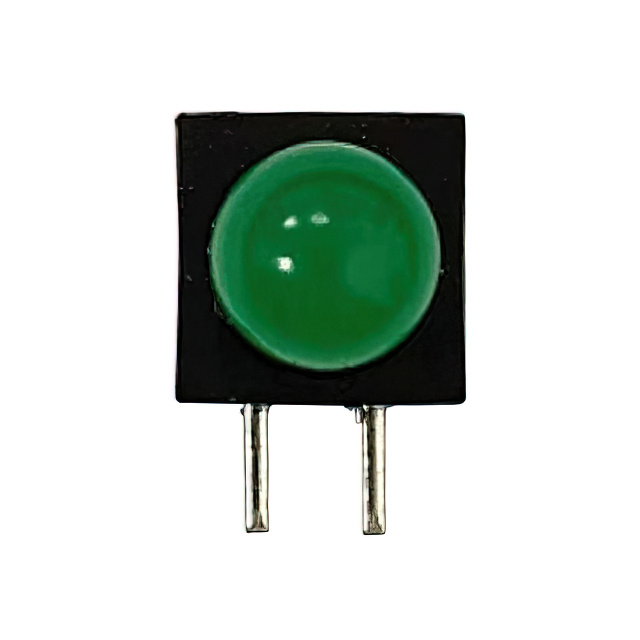

LED Circuit Board Indicator LED Circuit Board Indicator Single Green Diffused, Green 2V 20mA Round with Domed Top 4.70mm Dia Through Hole, Right Angle
Technical Specifications
Parameters and characteristics for this part
| Specification | HV-I8UG60G-MP9AA-U1930 |
|---|---|
| Color | Green |
| Configuration | Single |
| Current | 20 mA |
| Lens Diameter | 4.7 mm |
| Lens Style | Round, Domed Top |
| Lens Type | Green, Diffused |
| Millicandela Rating | 130 mcd |
| Mounting Type | Through Hole, Right Angle |
| Viewing Angle | 60 ° |
| Voltage Rating | 2 V |
| Wavelength - Peak | 575 nm |
