GRF4.0022.013.C

Active

SCHURTER Inc.

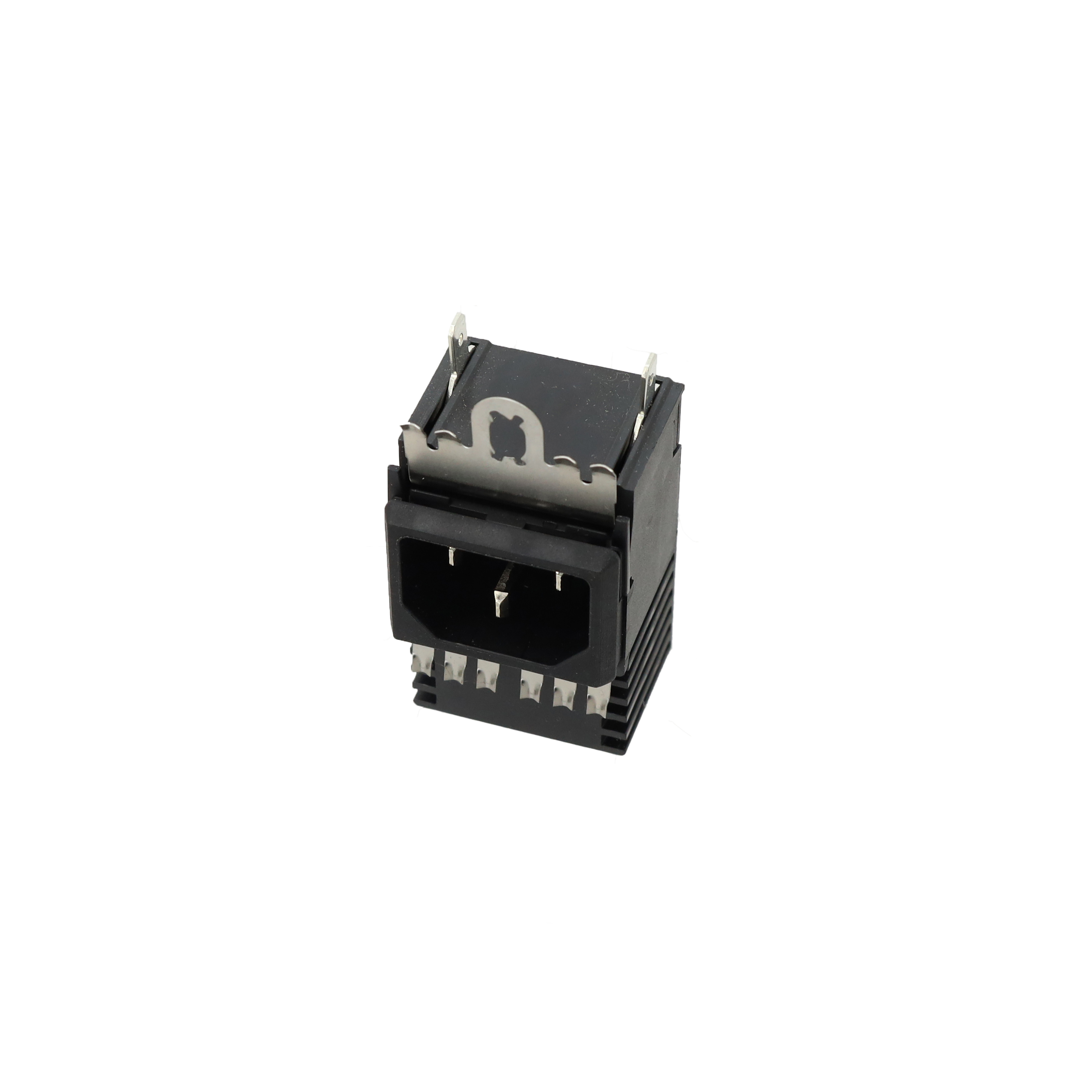

PWR ENT RCPT IEC320-C14 PANEL QC

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT RCPT IEC320-C14 PANEL QC

Technical Specifications

Parameters and characteristics for this part

Specification	GRF4.0022.013.C

Accomodates a Fuse	False
Approval Agency	UL, VDE, CSA
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	10 A
Current Rating - Filter	1 A
Features	Shielded
Filter Type	Filtered (EMI, RFI) - Commercial, Medical
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	30.5 mm
Panel Cutout Dimensions [y]	20.8 mm
Panel Thickness [custom]	0.059 in
Panel Thickness [custom]	1.5 mm
Termination	0.189 ", 4.8 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

PWR ENT RCPT IEC320-C14 PANEL QC

Part	Panel Thickness [custom]	Panel Thickness [custom]	Current Rating - Filter	Approval Agency	Termination	Termination	Material Flammability Rating	Voltage Rating - Appliance Inlet	Ingress Protection	Connector Type	Features	Current Rating - Appliance Inlet	Accomodates a Fuse	Connector Style	Filter Type	Mounting Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]
SCHURTER Inc. GRF4.0022.013.C	0.059 in	1.5 mm	1 A	CSA, UL, VDE	0.189 ", 4.8 mm	Quick Connect	UL94 V-0	250 VAC	IP40	Male Blades, Receptacle	Shielded	10 A		IEC 320-C14	Filtered (EMI, RFI) - Commercial, Medical	Panel Mount, Snap-In	30.5 mm	20.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Snap-In
