8PCV-03-006

Active

TE Connectivity AMP Connectors

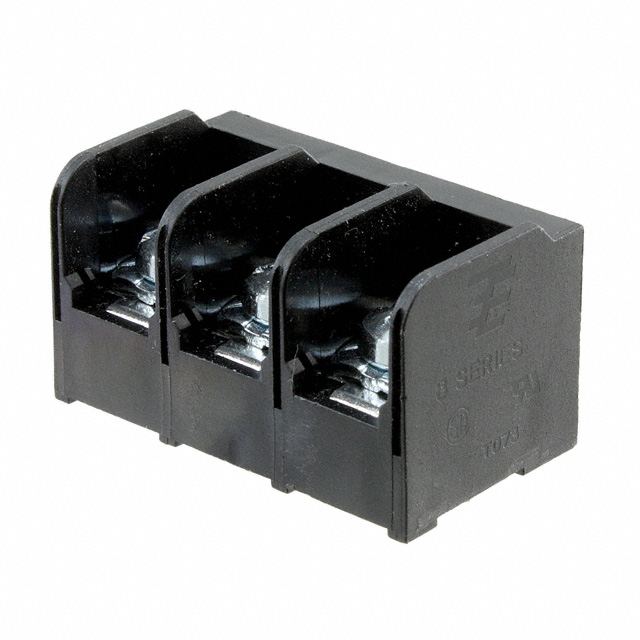

CONN BARRIER STRIP 3CIRC 0.438"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8PCV-03-006

Active

TE Connectivity AMP Connectors

CONN BARRIER STRIP 3CIRC 0.438"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.93
		10	$ 2.61
		25	$ 2.60
		50	$ 2.57
		200	$ 2.32
		400	$ 2.30
		600	$ 2.13
		1000	$ 1.90
		5000	$ 1.65

Description

General part information

8PCV Series

3 Circuit 0.438" (11.12mm) Barrier Block Connector Screws with Captive Plate

Documents

Technical documentation and resources

Datasheet

Specification	8PCV-03-006	8PCV Series

Barrier Type	3 Wall (Tri)	3 Wall (Tri)
Bottom Termination	PC Pin	PC Pin
Color	Black	Black
Current Rating (Amps)	30 A	30 A
Features	-	Flange
Material - Insulation	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole, Chassis, Panel
Number of Circuits	3	2 - 15
Number of Circuits	-	8
Number of Rows	1	1
Number of Wire Entries	3	2 - 15
Operating Temperature [Max]	120 °C	120 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	11.12 mm	11.12 mm
Pitch [x]	0.438 in	0.438 in
Terminal Block Type	Barrier Block	Barrier Block
Terminal Screw Finish	Zinc	Zinc
Terminal Screw Material	Steel	Steel
Top Termination	Screws with Captive Plate	Screws with Captive Plate, Screws
Voltage Rating	600 V	600 V
Wire Gauge [Max]	18 AWG	18 AWG
Wire Gauge [Min]	10 AWG	10 AWG

Part

Wire Gauge [Min]

Wire Gauge [Max]

Voltage Rating

Number of Rows

Top Termination

Current Rating (Amps)

Material - Insulation

Pitch [x]

Terminal Screw Finish

Number of Wire Entries

Terminal Screw Material

Mounting Type

Bottom Termination

Terminal Block Type

Number of Circuits

Material Flammability Rating

Operating Temperature [Min]

Operating Temperature [Max]

Barrier Type

Color

Features

Number of Circuits [custom]

TE Connectivity AMP Connectors

8PCV-05-006

10 AWG

18 AWG

600 V

Screws with Captive Plate

30 A

Thermoplastic

11.12 mm

0.438 in

Zinc

Steel

Through Hole

PC Pin

Barrier Block

UL94 V-0

-40 °C

120 °C

3 Wall (Tri)

Black

TE Connectivity AMP Connectors

8PCV-07-006

10 AWG

18 AWG

600 V

Screws with Captive Plate

30 A

Thermoplastic

11.12 mm

0.438 in

Zinc

Steel

Through Hole

PC Pin

Barrier Block

UL94 V-0

-40 °C

120 °C

3 Wall (Tri)

Black

TE Connectivity AMP Connectors

8PCV-02-008

10 AWG

18 AWG

600 V

Screws with Captive Plate

30 A

Thermoplastic

11.12 mm

0.438 in

Zinc

Steel

Chassis, Panel, Through Hole

PC Pin

Barrier Block

UL94 V-0

-40 °C

120 °C

3 Wall (Tri)

Black

Flange

TE Connectivity AMP Connectors

8PCV-02-006

10 AWG

18 AWG

600 V

Screws with Captive Plate

30 A

Thermoplastic

11.12 mm

0.438 in

Zinc

Steel

Through Hole

PC Pin

Barrier Block

UL94 V-0

-40 °C

120 °C

3 Wall (Tri)

Black

TE Connectivity AMP Connectors

8PCV-04-006

10 AWG

18 AWG

600 V

Screws with Captive Plate

30 A

Thermoplastic

11.12 mm

0.438 in

Zinc

Steel

Through Hole

PC Pin

Barrier Block

UL94 V-0

-40 °C

120 °C

3 Wall (Tri)

Black

TE Connectivity AMP Connectors

8PCV-02-007

10 AWG

18 AWG

600 V

Screws

30 A

Thermoplastic

11.12 mm

0.438 in

Zinc

Steel

Through Hole

PC Pin

Barrier Block

UL94 V-0

-40 °C

120 °C

3 Wall (Tri)

Black

TE Connectivity AMP Connectors

8PCV-15-006

10 AWG

18 AWG

600 V

Screws with Captive Plate

30 A

Thermoplastic

11.12 mm

0.438 in

Zinc

Steel

Through Hole

PC Pin

Barrier Block

UL94 V-0

-40 °C

120 °C

3 Wall (Tri)

Black

TE Connectivity AMP Connectors

8PCV-12-007

10 AWG

18 AWG

600 V

Screws

30 A

Thermoplastic

11.12 mm

0.438 in

Zinc

Steel

Through Hole

PC Pin

Barrier Block

UL94 V-0

-40 °C

120 °C

3 Wall (Tri)

Black

TE Connectivity AMP Connectors

8PCV-11-007

10 AWG

18 AWG

600 V

Screws

30 A

Thermoplastic

11.12 mm

0.438 in

Zinc

Steel

Through Hole

PC Pin

Barrier Block

UL94 V-0

-40 °C

120 °C

3 Wall (Tri)

Black

TE Connectivity AMP Connectors

8PCV-03-008

10 AWG

18 AWG

600 V

Screws with Captive Plate

30 A

Thermoplastic

11.12 mm

0.438 in

Zinc

Steel

Chassis, Panel, Through Hole

PC Pin

Barrier Block

UL94 V-0

-40 °C

120 °C

3 Wall (Tri)

Black

Flange

Part	Wire Gauge [Min]	Wire Gauge [Max]	Voltage Rating	Number of Rows	Top Termination	Current Rating (Amps)	Material - Insulation	Pitch [x]	Pitch [x]	Terminal Screw Finish	Number of Wire Entries	Terminal Screw Material	Mounting Type	Bottom Termination	Terminal Block Type	Number of Circuits	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Barrier Type	Color	Features
TE Connectivity AMP Connectors 8PCV-05-006	10 AWG	18 AWG	600 V	1	Screws with Captive Plate	30 A	Thermoplastic	11.12 mm	0.438 in	Zinc	5	Steel	Through Hole	PC Pin	Barrier Block	5	UL94 V-0	-40 °C	120 °C	3 Wall (Tri)	Black
TE Connectivity AMP Connectors 8PCV-07-006	10 AWG	18 AWG	600 V	1	Screws with Captive Plate	30 A	Thermoplastic	11.12 mm	0.438 in	Zinc	7	Steel	Through Hole	PC Pin	Barrier Block	7	UL94 V-0	-40 °C	120 °C	3 Wall (Tri)	Black
TE Connectivity AMP Connectors 8PCV-02-008	10 AWG	18 AWG	600 V	1	Screws with Captive Plate	30 A	Thermoplastic	11.12 mm	0.438 in	Zinc	2	Steel	Chassis, Panel, Through Hole	PC Pin	Barrier Block	2	UL94 V-0	-40 °C	120 °C	3 Wall (Tri)	Black	Flange
TE Connectivity AMP Connectors 8PCV-02-006	10 AWG	18 AWG	600 V	1	Screws with Captive Plate	30 A	Thermoplastic	11.12 mm	0.438 in	Zinc	2	Steel	Through Hole	PC Pin	Barrier Block	2	UL94 V-0	-40 °C	120 °C	3 Wall (Tri)	Black
TE Connectivity AMP Connectors 8PCV-04-006	10 AWG	18 AWG	600 V	1	Screws with Captive Plate	30 A	Thermoplastic	11.12 mm	0.438 in	Zinc	4	Steel	Through Hole	PC Pin	Barrier Block	4	UL94 V-0	-40 °C	120 °C	3 Wall (Tri)	Black
TE Connectivity AMP Connectors 8PCV-02-007	10 AWG	18 AWG	600 V	1	Screws	30 A	Thermoplastic	11.12 mm	0.438 in	Zinc	2	Steel	Through Hole	PC Pin	Barrier Block	2	UL94 V-0	-40 °C	120 °C	3 Wall (Tri)	Black
TE Connectivity AMP Connectors 8PCV-15-006	10 AWG	18 AWG	600 V	1	Screws with Captive Plate	30 A	Thermoplastic	11.12 mm	0.438 in	Zinc	15	Steel	Through Hole	PC Pin	Barrier Block	15	UL94 V-0	-40 °C	120 °C	3 Wall (Tri)	Black
TE Connectivity AMP Connectors 8PCV-12-007	10 AWG	18 AWG	600 V	1	Screws	30 A	Thermoplastic	11.12 mm	0.438 in	Zinc	12	Steel	Through Hole	PC Pin	Barrier Block	12	UL94 V-0	-40 °C	120 °C	3 Wall (Tri)	Black
TE Connectivity AMP Connectors 8PCV-11-007	10 AWG	18 AWG	600 V	1	Screws	30 A	Thermoplastic	11.12 mm	0.438 in	Zinc	11	Steel	Through Hole	PC Pin	Barrier Block	11	UL94 V-0	-40 °C	120 °C	3 Wall (Tri)	Black
TE Connectivity AMP Connectors 8PCV-03-008	10 AWG	18 AWG	600 V	1	Screws with Captive Plate	30 A	Thermoplastic	11.12 mm	0.438 in	Zinc	3	Steel	Chassis, Panel, Through Hole	PC Pin	Barrier Block	3	UL94 V-0	-40 °C	120 °C	3 Wall (Tri)	Black	Flange

8PCV-03-006

Deep-Dive with AI

8PCV-03-006

Deep-Dive with AI

Pricing

Description

8PCV Series

Documents

Datasheet

Technical Specifications

8PCV Series
