WLC06ENC40SN7AMM50M
ActiveAmphenol Industrial Operations

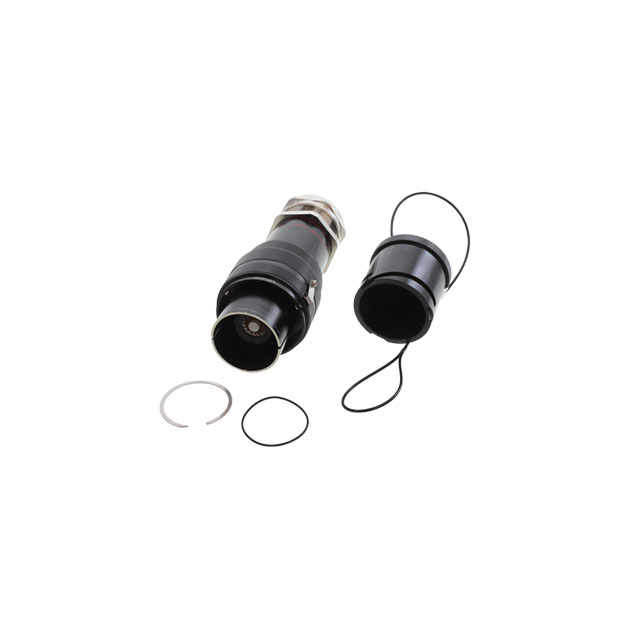

WIND-LOK WALL STRAIGHT PLUG, FIN
Deep-Dive with AI
Search across all available documentation for this part.
WLC06ENC40SN7AMM50M
ActiveAmphenol Industrial Operations
WIND-LOK WALL STRAIGHT PLUG, FIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | WLC06ENC40SN7AMM50M | WLC06 Series |
|---|---|---|
| Cable Opening [Max] [diameter] | 38 mm | 38 mm |
| Cable Opening [Max] [diameter] | 1.496 in | 1.496 in |
| Cable Opening [Min] [diameter] | 32 mm | 32 mm |
| Cable Opening [Min] [diameter] | 1.26 in | 1.26 in |
| Color | - | Brown, Green |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug |
| Contact Finish - Mating | Silver | Silver |
| Fastening Type | Reverse Bayonet Lock | Reverse Bayonet Lock |
| Features | Dust Cap, Backshell | Dust Cap, Backshell |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 1 | 1 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | N | W, N, J |
| Primary Material | Metal | Metal |
| Shell Finish | Black Anodized | Black Anodized |
| Shell Size - Insert | 40 | 40 |
| Shielding | Shielded | Shielded |
| Termination | Crimp | Crimp |
| Voltage Rating | 1000 VDC | 1000 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 338.62 | |
WLC06 Series
WIND-LOK WALL STRAIGHT PLUG, FIN
| Part | Primary Material | Connector Type | Orientation | Operating Temperature [Max] | Operating Temperature [Min] | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Min] [diameter] | Shell Finish | Features | Contact Finish - Mating | Shell Size - Insert | Voltage Rating | Mounting Type | Ingress Protection | Number of Positions | Color | Termination | Fastening Type | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations WLC06EBN40SW8MM63M | Metal | Female Sockets, Plug | W | 125 °C | -40 °C | 38 mm | 1.496 in | 32 mm | 1.26 in | Black Anodized | Backshell, Dust Cap | Silver | 40 | 1000 VDC | Free Hanging (In-Line) | Environment Resistant | 1 | Brown | Crimp | Reverse Bayonet Lock | Shielded |
Amphenol Industrial Operations WLC06ENC40SN7AMM50M | Metal | Female Sockets, Plug | N | 125 °C | -40 °C | 38 mm | 1.496 in | 32 mm | 1.26 in | Black Anodized | Backshell, Dust Cap | Silver | 40 | 1000 VDC | Free Hanging (In-Line) | Environment Resistant | 1 | Crimp | Reverse Bayonet Lock | Shielded | |
Amphenol Industrial Operations WLC06EGN40SJ5BMM50M | Metal | Female Sockets, Plug | J | 125 °C | -40 °C | 38 mm | 1.496 in | 32 mm | 1.26 in | Black Anodized | Backshell, Dust Cap | Silver | 40 | 1000 VDC | Free Hanging (In-Line) | Environment Resistant | 1 | Green | Crimp | Reverse Bayonet Lock | Shielded |
Description
General part information
WLC06 Series
1 (Power) Position Circular Connector Plug, Female Sockets Crimp
