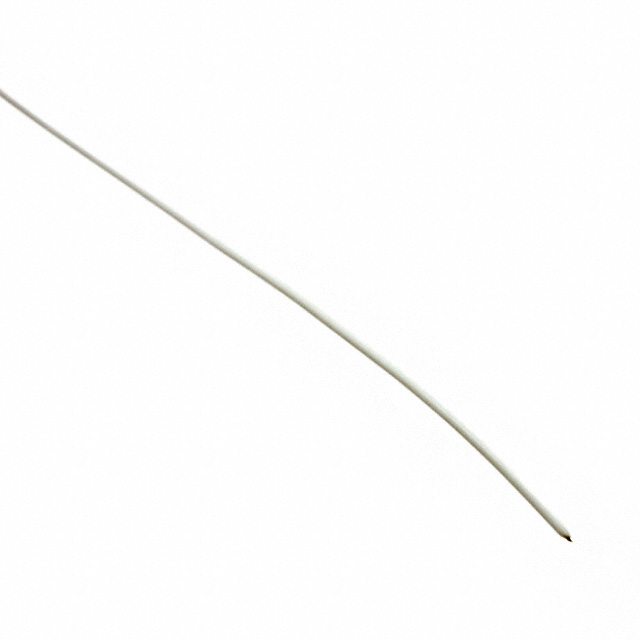

W28-6EU
ActiveVector Electronics
WIRE WW 28AWG ETFE WHITE 150'
Deep-Dive with AI
Search across all available documentation for this part.
W28-6EU
ActiveVector Electronics
WIRE WW 28AWG ETFE WHITE 150'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | W28-6EU |
|---|---|
| Conductor Diameter [diameter] | 0.32 mm |
| Conductor Diameter [diameter] | 0.013 in |
| Conductor Material | Copper, Bare |
| Conductor Plating | Silver |
| Jacket (Insulation) Diameter [diameter] | 0.58 mm |
| Jacket (Insulation) Diameter [diameter] | 0.023 in |
| Jacket (Insulation) Material | Ethylene Tetrafluoroethylene (ETFE) |
| Jacket (Insulation) Thickness | 0.005 in |
| Jacket (Insulation) Thickness | 0.13 mm |
| Length | 45.72 m |
| Length | 150 ft |
| Operating Temperature | 150 °C |
| Ratings | UL Style 1516/1523 |
| Wire Gauge | 28 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 96.85 | |
| 3 | $ 89.60 | |||
| 5 | $ 86.49 | |||
| 7 | $ 84.42 | |||
| 10 | $ 82.35 | |||
| 25 | $ 77.17 | |||
| 50 | $ 73.03 | |||
| 100 | $ 69.92 | |||
Description
General part information
W28-6E Series
Wire Wrap 28 AWG White Ethylene Tetrafluoroethylene (ETFE) 150' (45.72m)
