DIN-096RSC-RR1L-FJ

Obsolete

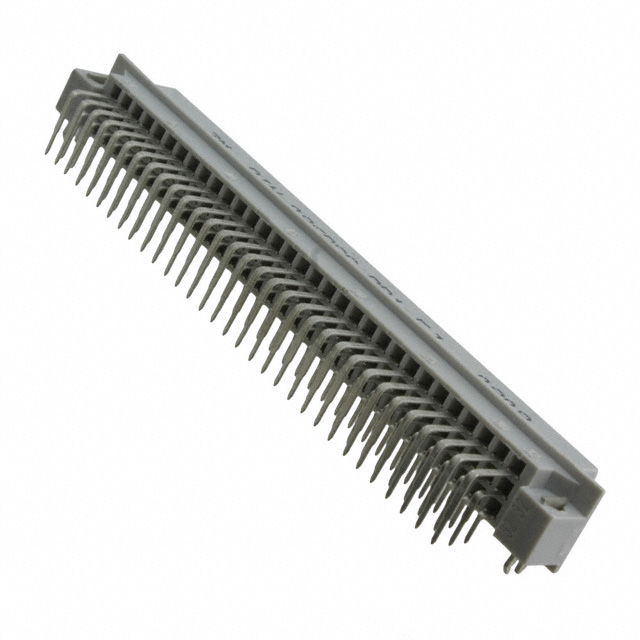

CONN DIN RCPT 96POS PCB RA GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DIN-096RSC-RR1L-FJ

Obsolete

CONN DIN RCPT 96POS PCB RA GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DIN-096RSC-RR1L-FJ	DIN-096R Series

Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets, Plug, Male Pins
Contact Finish	Gold	Gold
Contact Finish Thickness	10 Áin	1 - 30 Áin
Contact Finish Thickness	0.25 Ám	0.025 - 0.76 Ám
Current Rating (Amps)	3 A	3 A
Material - Insulation	Glass Filled, Polyester, Polybutylene Terephthalate (PBT)	Glass Filled, Polyester, Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle, Through Hole
Number of Positions	96	96
Number of Positions Loaded	All	All
Number of Rows	3	3
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Style	R	R
Termination	Solder	Solder, Press-Fit

DIN-096R Series

80001223298 DIN-096RSC-RR1L-HM=DIN/96P/R-SKT/A,B,&C/RA/3.00MMST/RET10PDNI/

Part	Contact Finish Thickness	Contact Finish Thickness	Number of Positions Loaded	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Style	Connector Type	Material - Insulation	Current Rating (Amps)	Number of Rows	Contact Finish	Mounting Type	Pitch [x]	Pitch [x]	Material Flammability Rating
3M DIN-096RSC-RR1L-HM	3 Áin	0.076 Ám	All	96	-55 °C	125 °C	Solder	R	Receptacle, Female Sockets	Glass Filled, Polybutylene Terephthalate (PBT), Polyester	3 A	3	Gold	Through Hole, Right Angle	2.54 mm	0.1 in	UL94 V-0
3M DIN-096RPC-W-TR	3 Áin	0.076 Ám	All	96	-55 °C	125 °C	Solder	R	Male Pins, Plug	Glass Filled, Polybutylene Terephthalate (PBT), Polyester	3 A	3	Gold	Through Hole	2.54 mm	0.1 in	UL94 V-0
3M DIN-096RPC-DPS-KR	30 Áin	0.76 Ám	All	96	-55 °C	125 °C	Press-Fit	R	Male Pins, Plug	Glass Filled, Polybutylene Terephthalate (PBT), Polyester	3 A	3	Gold	Through Hole	2.54 mm	0.1 in	UL94 V-0
3M DIN-096RSC-SR1-TG30	30 Áin	0.76 Ám	All	96	-55 °C	125 °C	Solder	R	Receptacle, Female Sockets	Glass Filled, Polybutylene Terephthalate (PBT), Polyester	3 A	3	Gold	Through Hole, Right Angle	2.54 mm	0.1 in	UL94 V-0
3M DIN-096RSC-RR1L-TG30	30 Áin	0.76 Ám	All	96	-55 °C	125 °C	Solder	R	Receptacle, Female Sockets	Glass Filled, Polybutylene Terephthalate (PBT), Polyester	3 A	3	Gold	Through Hole, Right Angle	2.54 mm	0.1 in	UL94 V-0
3M DIN-096RPC-S1-TR	3 Áin	0.076 Ám	All	96	-55 °C	125 °C	Solder	R	Male Pins, Plug	Glass Filled, Polybutylene Terephthalate (PBT), Polyester	3 A	3	Gold	Through Hole	2.54 mm	0.1 in	UL94 V-0
3M DIN-096RPC-DPW1-KV	30 Áin	0.76 Ám	All	96	-55 °C	125 °C	Press-Fit	R	Male Pins, Plug	Glass Filled, Polybutylene Terephthalate (PBT), Polyester	3 A	3	Gold	Through Hole	2.54 mm	0.1 in	UL94 V-0
3M DIN-096RPC-DPS-HM	3 Áin	0.076 Ám	All	96	-55 °C	125 °C	Press-Fit	R	Male Pins, Plug	Glass Filled, Polybutylene Terephthalate (PBT), Polyester	3 A	3	Gold	Through Hole	2.54 mm	0.1 in	UL94 V-0
3M DIN-096RPC-S1-FJ	10 Áin	0.25 Ám	All	96	-55 °C	125 °C	Solder	R	Male Pins, Plug	Glass Filled, Polybutylene Terephthalate (PBT), Polyester	3 A	3	Gold	Through Hole	2.54 mm	0.1 in	UL94 V-0
3M DIN-096RSC-RR1L-FJ	10 Áin	0.25 Ám	All	96	-55 °C	125 °C	Solder	R	Receptacle, Female Sockets	Glass Filled, Polybutylene Terephthalate (PBT), Polyester	3 A	3	Gold	Through Hole, Right Angle	2.54 mm	0.1 in	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

DIN-096R Series

96 Position Din Connector Receptacle, Female Sockets Gold Through Hole, Right Angle

Documents

Technical documentation and resources

No documents available
