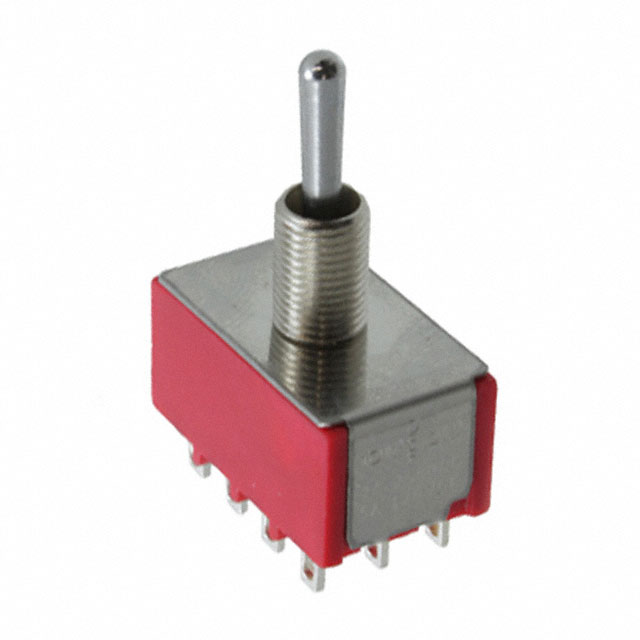

1004P4T1B1M1QE

Active

E-Switch

SWITCH TOGGLE 4PDT 5A 120V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TOGGLE 4PDT 5A 120V

Technical Specifications

Parameters and characteristics for this part

Specification	1004P4T1B1M1QE

Actuator Length [x]	10.41 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	1/4-40
Circuit	4PDT
Current Rating (Amps)	5 A
Electrical Life	40000 Cycles
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	0.25 in
Switch Function	Mom-Off-Mom
Termination Style	Solder Lug
Voltage Rating - AC	120 V
Voltage Rating - DC	28 V

SWITCH TOGGLE 4PDT 5A 120V

Part	Current Rating (Amps)	Bushing Thread	Actuator Type	Switch Function	Features	Actuator Material	Electrical Life	Voltage Rating - DC	Actuator Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Illumination	Termination Style	Voltage Rating - AC	Circuit	Panel Cutout Dimensions [diameter]
E-Switch 1004P4T1B1M1QE	5 A	1/4-40	Standard Round	Mom-Off-Mom	Epoxy Sealed Terminals	Brass, Chrome Plated	40000 Cycles	28 V	10.41 mm	-30 ░C	85 °C	Non-Illuminated	Solder Lug	120 V	4PDT	0.25 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	270	$ 8.09

General part information

Toggle Switch 4PDT Panel Mount
