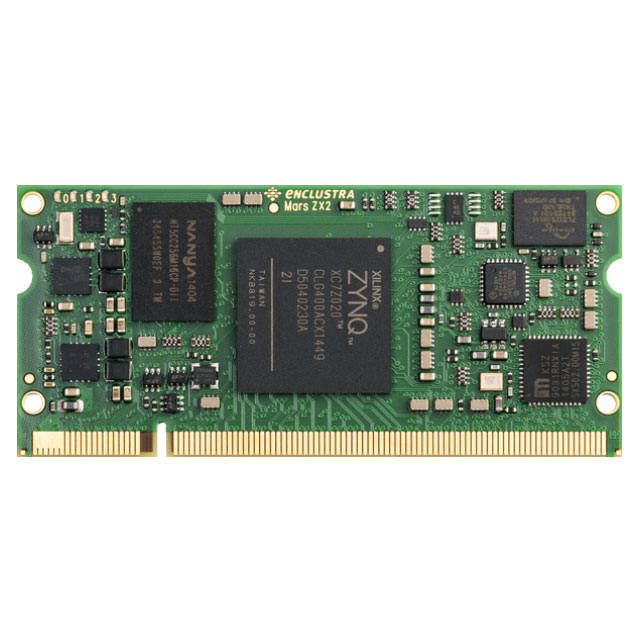

MA-ZX2-10-2I-D9-R2

Active

Enclustra FPGA Solutions

SOM ZYNQ 7Z010 512MB

Search across all available documentation for this part.

Active

Enclustra FPGA Solutions

SOM ZYNQ 7Z010 512MB

Technical Specifications

Parameters and characteristics commom to parts in this series

SOM ZYNQ 7Z020 512MB

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Connector Type	Co-Processor	Co-Processor	RAM Size	Core Processor	Module/Board Type	Operating Temperature [Max]	Operating Temperature [Min]	Flash Size
Enclustra FPGA Solutions MA-ZX2-20-2I-D9-R2	1.18 in	2.66 in	67.6 mm	30 mm	200 Pin	Z-7020	Zynq-7000	512 MB	ARM Cortex-A9	FPGA, MCU	85 °C	-40 °C	64 MB
Enclustra FPGA Solutions MA-ZX2-10-2I-D9-R2	1.18 in	2.66 in	67.6 mm	30 mm	200 Pin		Zynq-7000 (Z-7010)	512 MB	ARM Cortex-A9	FPGA, MCU	85 °C	-40 °C	64 MB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 212.50

General part information

- Embedded Module ARM Cortex-A9 Zynq-7000 (Z-7010) 512MB 64MB
