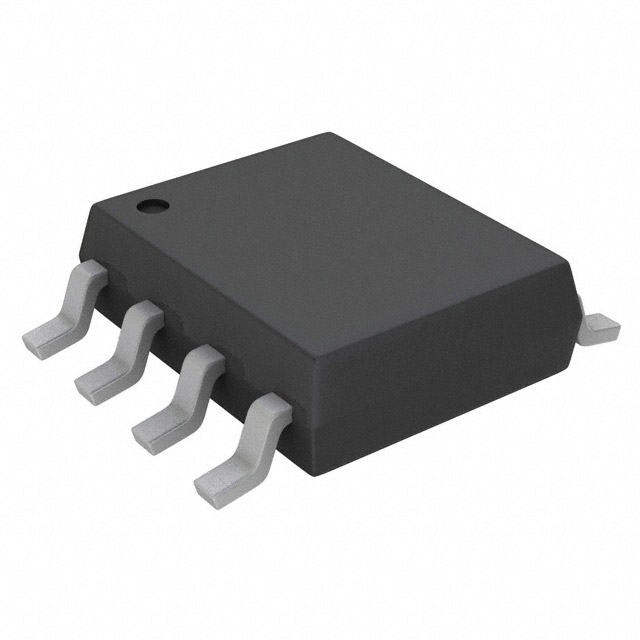

TC7WH157FU,LJ(CT
ActiveToshiba Semiconductor and Storage
IC MULTIPLEXER 1 X 2:1 SM8
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TC7WH157FU,LJ(CT
ActiveToshiba Semiconductor and Storage
IC MULTIPLEXER 1 X 2:1 SM8
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TC7WH157FU,LJ(CT |
|---|---|
| Circuit [custom] | 2:1 |
| Circuit [custom] | 1 |
| Current - Output High, Low [custom] | 8 mA |
| Current - Output High, Low [custom] | 8 mA |
| Independent Circuits | 1 |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-TSSOP, 8-MSOP |
| Package / Case [y] | 0.11 in |
| Package / Case [y] | 2.8 mm |
| Supplier Device Package | 8-SSOP |
| Type | Multiplexer |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 2 V |
| Voltage Supply Source | Single Supply |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.46 | |
| 10 | $ 0.27 | |||
| 25 | $ 0.22 | |||
| 100 | $ 0.17 | |||
| 250 | $ 0.14 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.11 | |||
| Digi-Reel® | 1 | $ 0.46 | ||
| 10 | $ 0.27 | |||
| 25 | $ 0.22 | |||
| 100 | $ 0.17 | |||
| 250 | $ 0.14 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.11 | |||
| Tape & Reel (TR) | 3000 | $ 0.09 | ||
| 6000 | $ 0.08 | |||
| 9000 | $ 0.08 | |||
| 15000 | $ 0.07 | |||
| 21000 | $ 0.07 | |||
| 30000 | $ 0.07 | |||
| 75000 | $ 0.06 | |||
| 150000 | $ 0.06 | |||
Description
General part information
TC7WH157FU,LJ(CT
Multiplexer 1 x 2:1 8-SSOP
