Specification	67ZR10KLF

Adjustment Type	Side Adjustment
Mounting Type	Through Hole
Number of Turns	20 turns
Power (Watts)	500 mW
Power (Watts) Options	1/2W
Resistance	10 kOhm
Resistive Material	Cermet
Size / Dimension Length	0.375 in
Size / Dimension Shape	Rectangular
Size / Dimension Width	0.195 in
Temperature Coefficient	100 ppm/°C
Termination Style	PC Pins
Tolerance	10 %

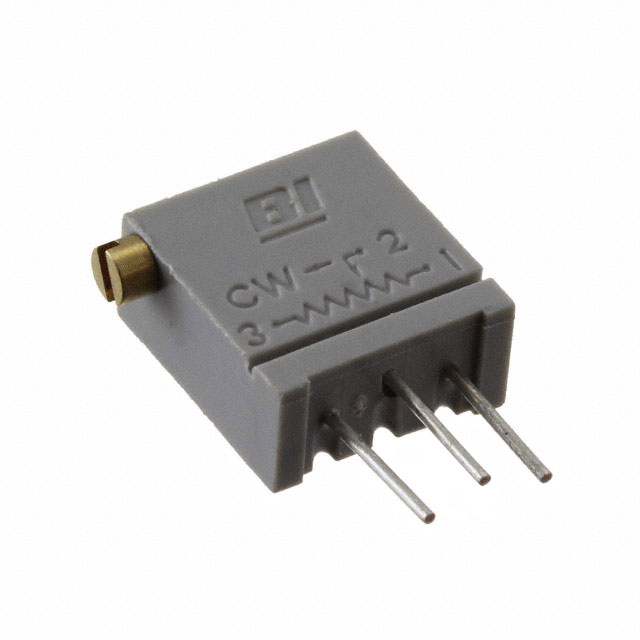

67ZR Series

Trimmer Resistors - Through Hole 3/8" Squ 10 10%

Part	Size / Dimension Length	Size / Dimension Shape	Size / Dimension Width	Temperature Coefficient	Adjustment Type	Number of Turns	Tolerance	Resistive Material	Termination Style	Resistance	Power (Watts)	Power (Watts) Options	Mounting Type
TT Electronics/BI 67ZR25KLF	0.437 in	Rectangular	0.195 in	100 ppm/°C	Side Adjustment	20 turns	10 %	Cermet	PC Pins	25 kOhm	500 mW	1/2W	Through Hole
TT Electronics/BI 67ZR250KLFTB	0.437 in	Rectangular	0.195 in	100 ppm/°C	Side Adjustment	20 turns	10 %	Cermet	PC Pins	250 kOhm	500 mW	1/2W	Through Hole
TT Electronics/BI 67ZR100KLFTB	0.437 in	Rectangular	0.195 in	100 ppm/°C	Side Adjustment	20 turns	10 %	Cermet	PC Pins	100 kOhm	500 mW	1/2W	Through Hole
TT Electronics/BI 67ZR100LF	0.437 in	Rectangular	0.195 in	100 ppm/°C	Side Adjustment	20 turns	10 %	Cermet	PC Pins	100 Ohms	500 mW	1/2W	Through Hole
TT Electronics/BI 67ZR50KLF	0.437 in	Rectangular	0.195 in	100 ppm/°C	Side Adjustment	20 turns	10 %	Cermet	PC Pins	50 kOhm	500 mW	1/2W	Through Hole
TT Electronics/BI 67ZR100LFTB	0.437 in	Rectangular	0.195 in	100 ppm/°C	Side Adjustment	20 turns	10 %	Cermet	PC Pins	100 Ohms	500 mW	1/2W	Through Hole
TT Electronics/BI 67ZR50KLFTB	0.437 in	Rectangular	0.195 in	100 ppm/°C	Side Adjustment	20 turns	10 %	Cermet	PC Pins	50 kOhm	500 mW	1/2W	Through Hole
TT Electronics/BI 67ZR1KLFTB	0.437 in	Rectangular	0.195 in	100 ppm/°C	Side Adjustment	20 turns	10 %	Cermet	PC Pins	1 kOhm	500 mW	1/2W	Through Hole
TT Electronics/BI 67ZR100KLF	0.437 in	Rectangular	0.195 in	100 ppm/°C	Side Adjustment	20 turns	10 %	Cermet	PC Pins	100 kOhm	500 mW	1/2W	Through Hole
TT Electronics/BI 67ZR1MEGLF	0.437 in	Rectangular	0.195 in	100 ppm/°C	Side Adjustment	20 turns	10 %	Cermet	PC Pins	1 MOhm	500 mW	1/2W	Through Hole
