325110-06-0
ActiveCurtis Industries
CONN BARRIER STRIP 6CIRC 0.325"
Deep-Dive with AI
Search across all available documentation for this part.
325110-06-0
ActiveCurtis Industries
CONN BARRIER STRIP 6CIRC 0.325"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 325110-06-0 | 325110 Series |
|---|---|---|
| Barrier Type | 2 Wall (Dual) | 2 Wall (Dual) |
| Bottom Termination | PC Pin | PC Pin |
| Current Rating (Amps) | 15 A | 15 A |
| Material - Insulation | Polypropylene (PP) | Polypropylene (PP) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Circuits | 6 | 4 - 21 |
| Number of Circuits | - | 8 |
| Number of Rows | 1 | 1 |
| Number of Wire Entries | 6 | 4 - 21 |
| Operating Temperature | 105 C | 105 C |
| Pitch [x] | 8.26 mm | 8.26 mm |
| Pitch [x] | 0.325 in | 0.325 in |
| Terminal Block Type | Barrier Block | Barrier Block |
| Terminal Screw Material | Steel | Steel |
| Top Termination | Screws | Screws |
| Voltage Rating | 300 VDC | 300 VDC |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 14 AWG | 14 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.18 | |
| 10 | $ 3.68 | |||
| 30 | $ 3.15 | |||
| 50 | $ 2.95 | |||
| 100 | $ 2.71 | |||
| 250 | $ 2.48 | |||
| 500 | $ 2.34 | |||
| 1000 | $ 2.23 | |||
325110 Series
CONN BARRIER STRP 14CIRC 0.325"
| Part | Mounting Type | Number of Wire Entries | Number of Rows | Terminal Screw Material | Bottom Termination | Material Flammability Rating | Wire Gauge [Min] | Wire Gauge [Max] | Top Termination | Pitch [x] | Pitch [x] | Barrier Type | Terminal Block Type | Operating Temperature | Current Rating (Amps) | Number of Circuits | Material - Insulation | Voltage Rating | Number of Circuits [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries 325110-14-0 | Through Hole | 14 | 1 | Steel | PC Pin | UL94 V-0 | 14 AWG | 22 AWG | Screws | 8.26 mm | 0.325 in | 2 Wall (Dual) | Barrier Block | 105 C | 15 A | 14 | Polypropylene (PP) | 300 VDC | |
Curtis Industries 325110-08-0 | Through Hole | 8 | 1 | Steel | PC Pin | UL94 V-0 | 14 AWG | 22 AWG | Screws | 8.26 mm | 0.325 in | 2 Wall (Dual) | Barrier Block | 105 C | 15 A | Polypropylene (PP) | 300 VDC | 8 | |
Curtis Industries 325110-18-0 | Through Hole | 18 | 1 | Steel | PC Pin | UL94 V-0 | 14 AWG | 22 AWG | Screws | 8.26 mm | 0.325 in | 2 Wall (Dual) | Barrier Block | 105 C | 15 A | 18 | Polypropylene (PP) | 300 VDC | |
Curtis Industries 325110-15-0 | Through Hole | 15 | 1 | Steel | PC Pin | UL94 V-0 | 14 AWG | 22 AWG | Screws | 8.26 mm | 0.325 in | 2 Wall (Dual) | Barrier Block | 105 C | 15 A | 15 | Polypropylene (PP) | 300 VDC | |
Curtis Industries 325110-06-0 | Through Hole | 6 | 1 | Steel | PC Pin | UL94 V-0 | 14 AWG | 22 AWG | Screws | 8.26 mm | 0.325 in | 2 Wall (Dual) | Barrier Block | 105 C | 15 A | 6 | Polypropylene (PP) | 300 VDC | |
Curtis Industries 325110-05-0 | Through Hole | 5 | 1 | Steel | PC Pin | UL94 V-0 | 14 AWG | 22 AWG | Screws | 8.26 mm | 0.325 in | 2 Wall (Dual) | Barrier Block | 105 C | 15 A | 5 | Polypropylene (PP) | 300 VDC | |
Curtis Industries 325110-20-0 | Through Hole | 20 | 1 | Steel | PC Pin | UL94 V-0 | 14 AWG | 22 AWG | Screws | 8.26 mm | 0.325 in | 2 Wall (Dual) | Barrier Block | 105 C | 15 A | 20 | Polypropylene (PP) | 300 VDC | |
Curtis Industries 325110-17-0 | Through Hole | 17 | 1 | Steel | PC Pin | UL94 V-0 | 14 AWG | 22 AWG | Screws | 8.26 mm | 0.325 in | 2 Wall (Dual) | Barrier Block | 105 C | 15 A | 17 | Polypropylene (PP) | 300 VDC | |
Curtis Industries 325110-10-0 | Through Hole | 10 | 1 | Steel | PC Pin | UL94 V-0 | 14 AWG | 22 AWG | Screws | 8.26 mm | 0.325 in | 2 Wall (Dual) | Barrier Block | 105 C | 15 A | 10 | Polypropylene (PP) | 300 VDC | |
Curtis Industries 325110-09-0 | Through Hole | 9 | 1 | Steel | PC Pin | UL94 V-0 | 14 AWG | 22 AWG | Screws | 8.26 mm | 0.325 in | 2 Wall (Dual) | Barrier Block | 105 C | 15 A | Polypropylene (PP) | 300 VDC |
Description
General part information
325110 Series

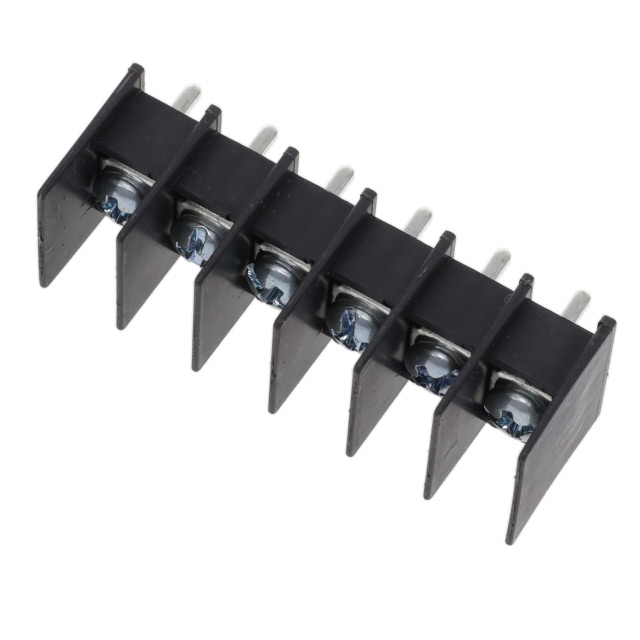

6 Circuit 0.325" (8.26mm) Barrier Block Connector Screws
