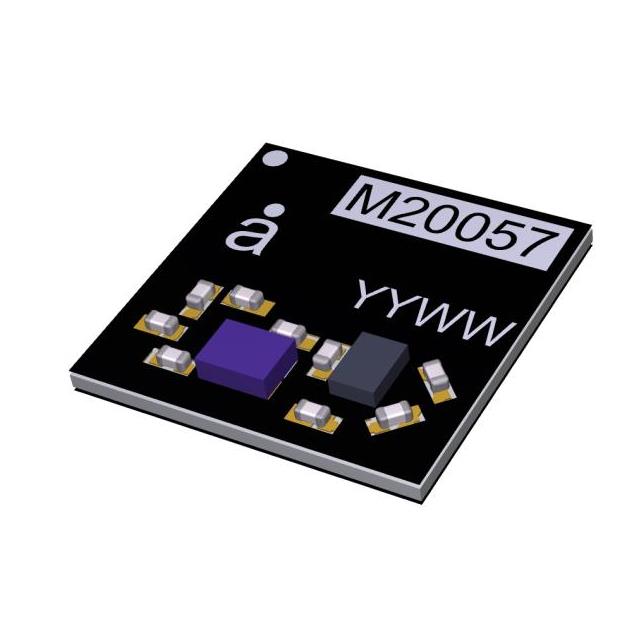

M20057-1 1559-1609 MHZ: GNSS SMD

Search across all available documentation for this part.

Active

Antenova

M20057-1 1559-1609 MHZ: GNSS SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M20057-1	M20057 Series

Antenna Type	Chip	Chip
Applications	GNSS	GNSS
Features	LNA	LNA
For Use With/Related Products	-	M20057-1
Frequency	-	1.609 GHz
Frequency	-	1.559 GHz
Frequency (Center/Band)	1.584 GHz	1.584 GHz
Frequency Group	UHF	UHF
Frequency Group [Max]	2 GHz	2 GHz
Frequency Group [Min]	1 GHz	1 GHz
Frequency Range [Max]	1.609 GHz	1.609 GHz
Frequency Range [Min]	1.559 GHz	1.559 GHz
Height (Max) [Max]	0.035 in	0.035 in
Height (Max) [Max]	0.9 mm	0.9 mm
Mounting Type	Surface Mount	Surface Mount
Number of Bands	1	1
RF Family/Standard	Navigation	Navigation
Supplied Contents	-	Board(s)
Termination	Solder	Solder
Type	-	Antenna

M20057-1 1559-1609 MHZ: GNSS SMD

Part	Mounting Type	Features	Antenna Type	Height (Max) [Max]	Height (Max) [Max]	Frequency (Center/Band)	Frequency Range [Max]	Frequency Range [Min]	RF Family/Standard	Termination	Applications	Number of Bands	Frequency Group [Max]	Frequency Group [Min]	Frequency Group	Supplied Contents	Type	For Use With/Related Products	Frequency [Max]	Frequency [Min]
Antenova M20057-1	Surface Mount	LNA	Chip	0.035 in	0.9 mm	1.584 GHz	1.609 GHz	1.559 GHz	Navigation	Solder	GNSS	1	2 GHz	1 GHz	UHF
Antenova M20057-EVB-1																Board(s)	Antenna	M20057-1	1.609 GHz	1.559 GHz
