Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | AEK-MOT-2DC70S1 | AEK-MOT Series |
|---|---|---|
| - | - | |
| Contents | Board(s) | Board(s) |
| Embedded | True | True |
| Function | Motor Controller/Driver | Motor Controller/Driver |
| Primary Attributes | Motors (DC) | Motors (DC) |
| Secondary Attributes | - | SPI Interface(s) |
| Supplied Contents | Board(s) | Board(s) |
| Type | Power Management | Power Management |
| Utilized IC / Part | VN7070BAS, VN7E010AJ, VN7050AJ | L99SM81V, VN7070BAS, VN7E010AJ, VN7050AJ |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
AEK-MOT Series
Automotive-grade Dual DC motor driver up to 15A each
| Part | Type | Contents | Utilized IC / Part | Supplied Contents | Secondary Attributes | Primary Attributes | Function | Embedded |
|---|---|---|---|---|---|---|---|---|
STMicroelectronics AEK-MOT-SM81M1 | ||||||||
STMicroelectronics AEK-MOT-SM81M1 | Power Management | Board(s) | L99SM81V | Board(s) | SPI Interface(s) | |||
STMicroelectronics AEK-MOT-2DC70S1 | ||||||||
STMicroelectronics AEK-MOT-SM81M1 | ||||||||
STMicroelectronics AEK-MOT-2DC70S1 | Power Management | Board(s) | VN7050AJ, VN7070BAS, VN7E010AJ | Board(s) | Motors (DC) | Motor Controller/Driver | ||
STMicroelectronics AEK-MOT-SM81M1 | ||||||||
STMicroelectronics AEK-MOT-2DC70S1 |
Description
General part information
AEK-MOT Series

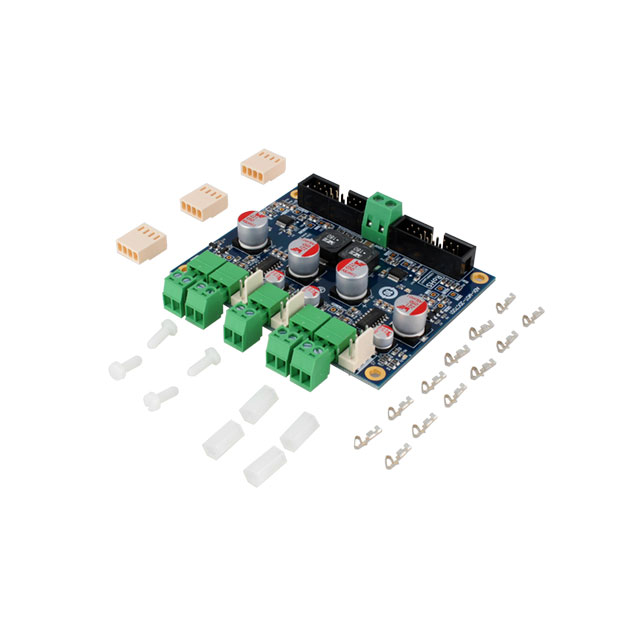

The AEK-MOT-2DC70S1 is a very compact solution for multi DC motor driving applications, embedding all the driver and signal decoding functions on the same board.
Together with current sensing capability, the AEK-MOT-2DC70S1 features three independent encoder inputs. The DC motor drivers have separate half-bridge driving which allows up to three separate motors with only two devices, using an appropriate driving sequence.
The motor driver is ideal for two-wheel applications and allows engineers to build highly compact motor control solutions. The two high-side drivers facilitate additional driving for system actuators (unidirectional DC motor, LED, pump, etc.).
Documents
Technical documentation and resources
